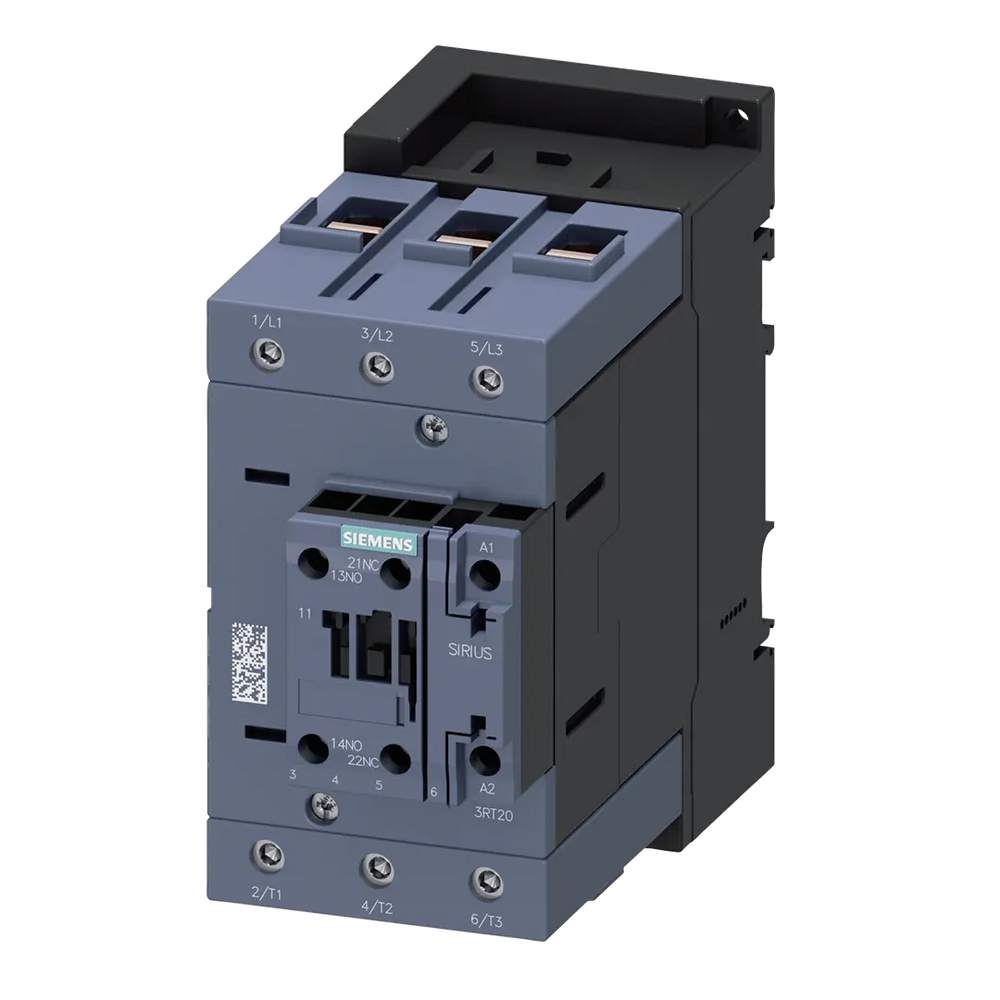

Siemens Power contactor, 3-pole, 230VAC, size S3, 45kW Part number 3RT2046-1AP00

EAN / Barcode 4047621022239
Product Type Control Panel
Product Class Power contactor, AC switching
ETIM Class Power contactor, AC switching
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Power contactor, AC-3e/AC-3, 95 A, 45 kW / 400 V, 3-pole, 230 V AC, 50 Hz, auxiliary contacts: 1 NO + 1 NC, screw terminal, size: S3. Article Number: 3RT2046-1AP00.

Key Specifications

Electrical Ratings:

  • Current rating: 95 A (AC-3e/AC-3)
  • Power rating: 45 kW / 400 V
  • Control voltage: 230 V AC, 50 Hz
  • Poles: 3-pole

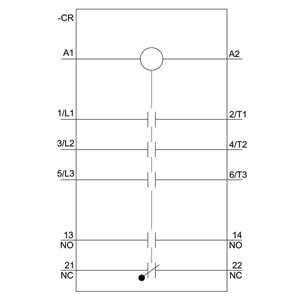

  • Auxiliary contacts: 1 NO + 1 NC

Construction Features:

  • Screw terminal connections
  • Frame size: S3
  • Suitable for industrial applications

Physical Specifications

  • Net weight: 1.719 kg
  • Packaging dimensions: 161 × 168 × 81 mm
  • Country of origin: Germany

Product Identifiers

  • EAN: 4047621022239
  • UPC: 804766406812

Compliance Information

  • RoHS compliant since 01.03.2017
  • WEEE (2012/19/EU) Take-Back Obligation: Yes

REACH Regulation Information There is currently no information on SVHC (Substances of Very High Concern) from the supply chain and established procedures for screening products for Substances of Very High Concern. Products are regularly compared with information from upstream users regarding substances indicated in the candidate list in accordance with REACH regulation requirements. Information will be updated as new findings become available.

Download existing graphical data for this product:

Product Datasheet

CAD Drawings & Technical Documentation

Certificates

Technical Specifications

Depth152 mm
Height140 mm
Modular versionYes
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Number of normally open contacts as main contact3
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz1000 V
Rated control supply voltage AC 50 Hz230 V
Rated operation current Ie at AC-1, 400 V130 A
Rated operation current Ie at AC-3, 400 V95 A
Rated operation current Ie at AC-4, 400 V80 A
Rated operation power at AC-3, 400 V45 kW
Rated operation power NEMA55.162409999 kW
Type of electrical connection of main circuitScrew connection
Voltage type for actuatingAC
Width70 mm
Part Width161 mm
Part Height168 mm
Part Depth81 mm
Weight1719 g
Country of OriginGermany
View complete specifications on Siemens
