Siemens Power cable pre-assembled, 4X1,5C, 9.5m Siemens
View on Siemens
Siemens

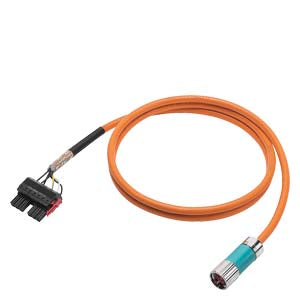

Siemens Power cable pre-assembled, 4X1,5C, 9.5m

SKU / Article No. Ford-6FX8002-5CN06-1CA0
EAN / Barcode - None -
Product Type Cable & Cable Management
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

This flexible power cable with a PUR sheath provides high durability for applications requiring extensive movement. Rated for 600V/1000V, it supports 10 million bending cycles and is designed for use in power chains with a high traversing velocity of 300 m/min.

Technical Specifications

Compliance / CertificationsCanada: CSA-C22.2-N.210.2-M90 / UL758 (USA)
Country of OriginGermany
FlammabilityEN 60332-1-1 to 1-3
Temperature: Operating-20°C to 60°C
Material: Insulation / Inner sheathCFC / Halogen / Silicone-free
Material: Jacket / Outer SheathPUR DESINA
Bending RadiusFixed: 38 / Flexible: 75
Part Length (mm)20 000mm
Diameter: External conduit size (mm)9.5mm
Weight 3000g
Connection TypeBasis cable
Test Voltage2.0 kV (rms Signal conductors) / 4.0 kV (rms Power conductors)
Voltage Range/Rating600 V / 1000 V
ColourOrange
RAL CodeRAL 2003
View complete specifications on Siemens
