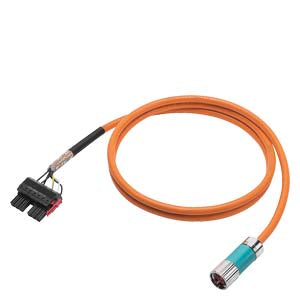

Siemens Power cable, pre-assembled, 4 x 1.5C, (L) 9.5mm Siemens Click to enlarge

Siemens Power cable, pre-assembled, 4 x 1.5C, (L) 9.5mm

VendorSiemens
Product TypeCable & Cable Management
SKU / Article No.Ford-6FX8002-5CN06-1BF0

Product Description

Additional Information

Compliance / CertificationsCanada: CSA-C22.2-N.210.2-M90 / UL758 (USA)
Country of OriginGermany
FlammabilityEN 60332-1-1 to 1-3
Temperature: Operating-20°C to 60°C
Material: Insulation / Inner sheathCFC / Halogen / Silicone-free
Material: Jacket / Outer SheathPUR DESINA
Bending RadiusFixed: 38
Part Length (mm)15 000mm
Diameter: External conduit size (mm)9.5mm
Weight 2250g
Connection TypeBasis cable
Test Voltage2.0 kV (rms Signal conductors) / 4.0 kV (rms Power conductors)
Voltage Range/Rating600 V / 1000 V
ColourOrange
RAL CodeRAL 2003
