Siemens Power cable, pre-assembled, 4 x 1.5C, 12m

Product Overview

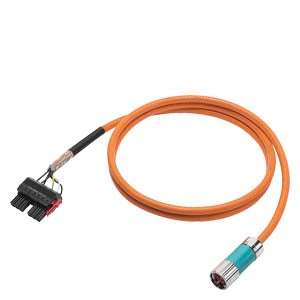

Power cable pre-assembled TYPE 6FX8002-5DN06 4X1.5, (2X1.5)C C CONNECTOR SPEED-CONNECT SIZE 1 FOR SINAMICS S120 BOOKSIZE MOTOR MODULE C-/D-TYPES MOTION-CONNECT 800PLUS TRAILING TYPE, UL/CSA, DESINA DMAX=12 MM LENGTH (M) = 10. This high-quality pre-assembled power cable provides reliable motor connections between SIMOTICS motors and SINAMICS S120 drive systems with integrated brake functionality for demanding industrial automation applications.

Key Features

Cable Construction:

• Pre-assembled MOTION-CONNECT 800 PLUS power cable
• 4 x 1.5 mm² power conductors plus 2 x 1.5 mm² brake conductors
• 12 mm outside diameter with 10 meter length
• PUR (Polyurethane) outer sheath for industrial durability
• Orange cable color for easy identification

Connector Design:

• M23 SPEED-CONNECT Size 1 connector for motor connection
• SINAMICS S120 Booksize Motor Module C-/D-Types connector
• Pre-assembled connectors for plug-and-play installation
• Integrated brake connections for motor brake systems
• Trailing cable design optimized for dynamic applications

Performance Specifications:

• Voltage Rating: 600/1000 VAC
• Temperature Range: -50°C to +80°C (-58°F to +176°F)
• Insulation: CFC (Chlorine-free) insulation material
• Certifications: UL/CSA approved for North American applications
• Cable Type: Trailing type suitable for cable carriers

Technical Specifications

Physical Characteristics:

• Cable Length: 10 meters
• Net Weight: 2.515 kg
• Outside Diameter: 12 mm
• Conductor Size: 4 x 1.5 mm² (power) + 2 x 1.5 mm² (brake)
• Cable Color: Orange outer sheath
• Connector Type: M23 SPEED-CONNECT to SINAMICS connector

Electrical Properties:

• Voltage Rating: 600/1000 VAC
• Conductor Material: High-quality copper conductors
• Insulation Type: CFC (Chlorine-free compound)
• Sheath Material: PUR (Polyurethane) for flexibility
• Temperature Rating: -50°C to +80°C continuous operation

Standards and Compliance:

• UL/CSA Certification: Approved for North American installations
• RoHS Compliance: Yes, since 22/02/17
• WEEE Take-Back Obligation: Yes, covered under WEEE (2012/19/EU)
• Export Control: ECCN: N / AL: N
• Country of Origin: Slovakia

Product Information:

• UPC: 804766243660
• Packaging: 1 piece per package
• Product Class: Custom manufactured product (non-returnable)

Applications

The MOTION-CONNECT 800 PLUS power cable is designed for SIMOTICS S-1FT2/S-1FT7/S-1FK2/S-1FK7/S-1FG1/M-1PH8 motors connected to SINAMICS S120 drive systems. Ideal for industrial automation, robotics applications, machine tool applications requiring precise motor control, automated production lines, and material handling systems requiring integrated brake functionality.

Installation Benefits

Pre-Assembled Construction:

• Ready-to-install cable assembly eliminates field wiring
• Reduces installation time and labor costs
• Factory-tested for guaranteed performance
• Eliminates wiring errors and reduces commissioning time

SPEED-CONNECT Technology:

• Quick and secure connector engagement
• Robust mechanical connection for industrial environments
• Integrated locking mechanism prevents accidental disconnection
• Field-replaceable connectors for maintenance flexibility

Trailing Cable Design:

• Optimized for dynamic applications with cable carriers
• Flexible PUR sheath withstands continuous flexing
• Torsion-resistant construction for robotic applications
• Excellent resistance to oils, coolants, and chemicals

Compatibility

Motor Compatibility:

• SIMOTICS S-1FT2/S-1FT7: Servo motors with SPEED-CONNECT interface
• SIMOTICS S-1FK2/S-1FK7: Compact and high-dynamic servo motors
• SIMOTICS S-1FG1: Linear motors
• SIMOTICS M-1PH8: Synchronous motors with brake

Drive System Integration:

• SINAMICS S120: Booksize Motor Module C-/D-Types
• MOTION-CONNECT 800 PLUS: System compatibility
• Cable Carrier Compatible: Suitable for dynamic installations
• Integrated Brake System: Support for motor brake applications

REACH Compliance

Currently, there is no information on SVHC (Substances of Very High Concern) from the supply chain. Products are regularly compared with the REACH candidate list, and information will be updated as new findings become available.
