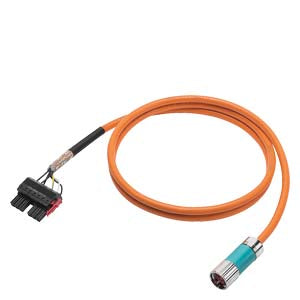

Siemens Power cable, pre-assembled, 4 x 1.5 (2x1.5)C, 12mm

SKU / Article No. Ford-6FX8012-5DN06-1BA0
EAN / Barcode - None -
Product Type Cable & Cable Management
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

This robust power cable for SINAMICS S120 connectors features a PUR sheath in orange, rated for 600V/1000V. It supports 10 million bending cycles and is suited for high-velocity, dynamic installations in industrial applications.

Technical Specifications

Compliance / CertificationsCSA-C22.2-N.210.2-M90 (Canada) / UL 758 (USA)
Country of OriginGermany
FlammabilityEN 60332-1-1 to 1-3
Temperature: Operating-20°C to 60°C
Material: Insulation / Inner sheathCFC / Halogen / Silicone-free
Material: Jacket / Outer SheathPUR DESINA
Bending RadiusFixed: 48 / Flexible: 90
Part Length (mm)10 000mm
Weight 2300g
Connection TypeBasis cable
Test Voltage2.0 kV (rms Signal conductors) / 4.0 kV (rms Power conductors)
Voltage Range/Rating600 V / 1000 V
ColourOrange
RAL CodeRAL 2003
