Siemens Power cable extension, 4 x 1.5 + (2x1.5)C, speed-connect
View on Siemens
Siemens

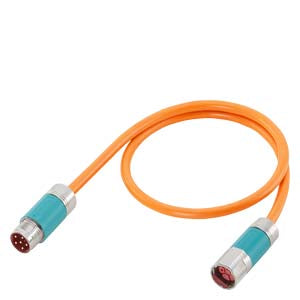

Siemens Power cable extension, 4 x 1.5 + (2x1.5)C, speed-connect

SKU / Article No. Ford-6FX8002-5DN05-1AB0
Product Type Cable & Cable Management
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

This MOTION CONNECT 800PLUS cable is optimized for motion applications, providing a 4 kV test voltage, and a flexible PUR sheath for durability. It is suitable for high-speed motion control with a maximum acceleration of 50 m/s².

Technical Specifications

Compliance / CertificationsCSA-C22.2-N.210.2-M90 / UL 758
Country of OriginGermany
FlammabilityEN 60332-1-1 to 1-3
Temperature: Operating-20°C to 60°C
Material: Insulation / Inner sheathCFC / Halogen / Silicone-free
Material: Jacket / Outer SheathPUR DESINA
Bending RadiusFixed - 48 / Flexible - 90
Part Length (mm)1 000mm
Weight 230g
Connection TypeExtension / Conector SPEED-CONNECT
Voltage Range/Rating600 V / 1000 V
View complete specifications on Siemens
