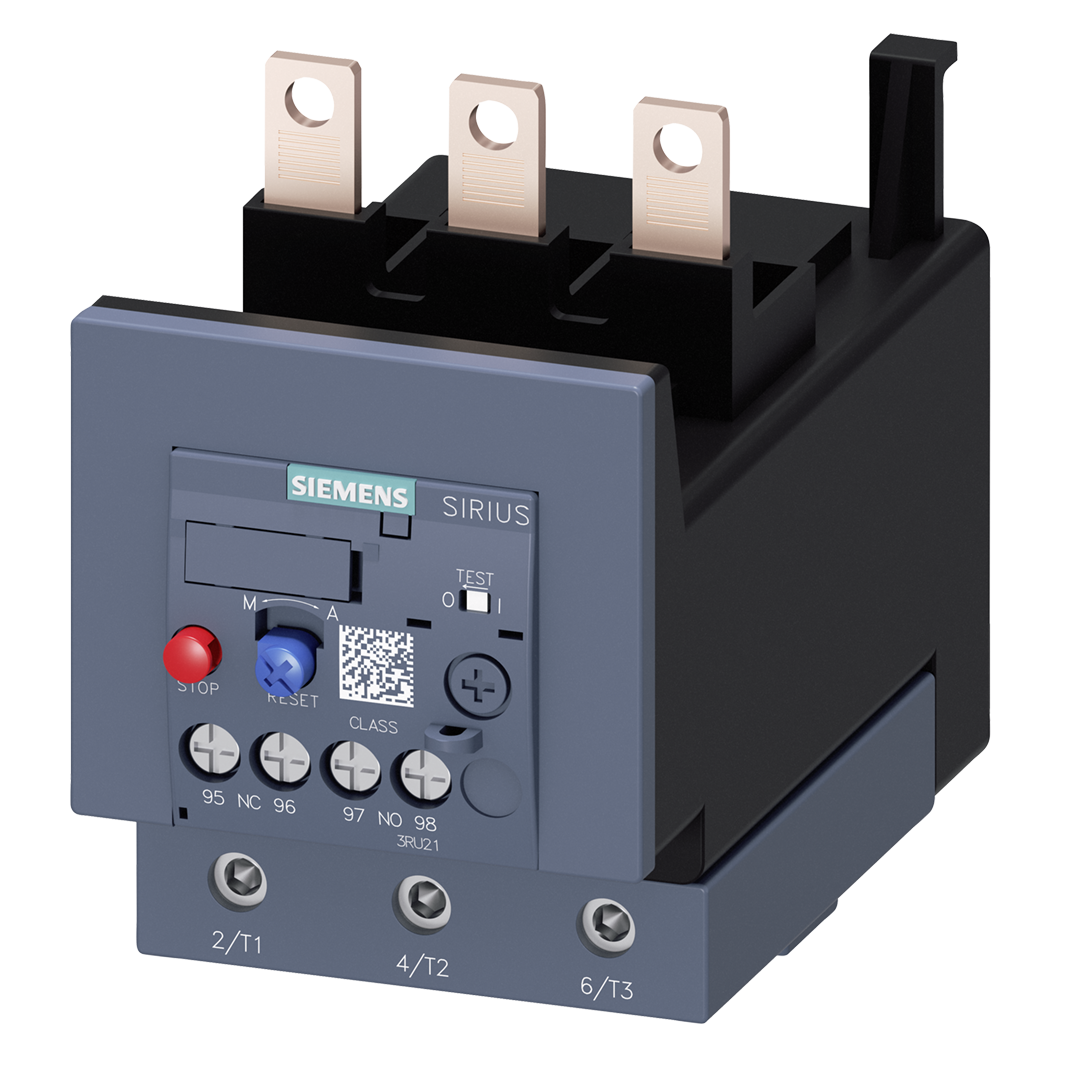

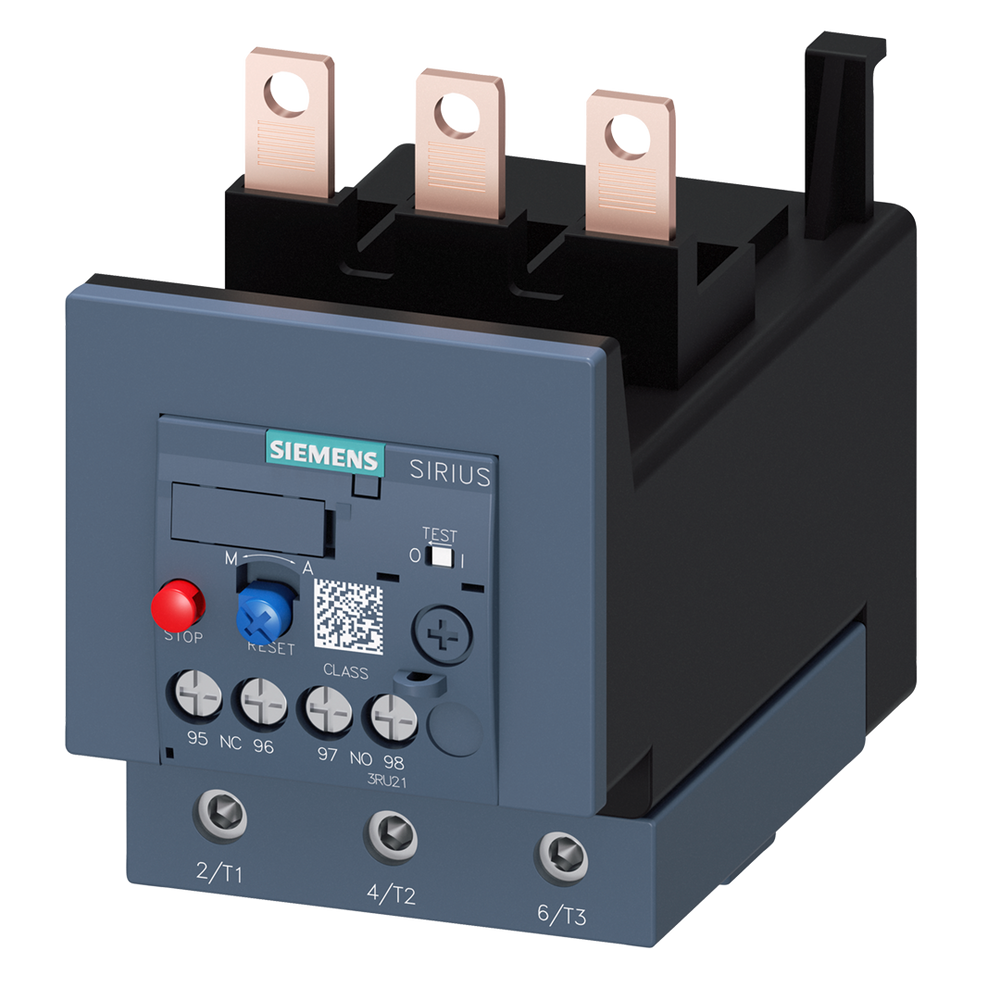

Siemens Overload relay, Thermal For motor protection Size S3 Part number 3RU2146-4KB0
Product Description
Siemens thermal overload relay, 3RU2146-4KB0 is the perfect fit for current-dependent overload protection in the main circuit. The thermal overload relay offers a wide setting range of 57 - 75 A. The SIRIUS overload relay provides an excellent safeguard for motors and systems. The thermal overload relay is designed to effortlessly be inserted due to its optimised size S3 as well as a Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset.
Monitoring relays are used in all areas of electrical switchgear technology.
Technical Specifications
| Adjustable current range | 75 A |
| Compliance/Standards | IEC 61508, IEC 60529, IEC 60068-2, IEC 81346-2 |
| country_of_origin | Germany |
| description | Overload relay 57...75 A Thermal For motor protection Size S3, Class 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset |
| IP Rating | IP20 |
| IP Rating Detailed | IP20 touch protection on the front according to IEC 60529 finger |
| Max. rated operation voltage Ue | 1000 V |
| Mounting method | Direct attachment |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Part Depth (mm) | 132,00mm |
| Part Height (mm) | 113,00mm |
| Part Width (mm) | 78,00mm |
| Release class | CLASS 10 |
| Reset function automatic | Yes |
| Reset function push-button | Yes |
| Type of electrical connection of main circuit | Screw connection |
| Weight (g) | 0,600 Kg |
