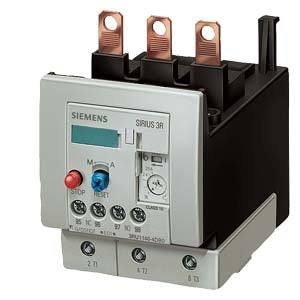

Siemens Overload relay for motor protection, size S3, 80-100A

Product Overview

Overload relay 80...100 A for motor protection, Size S3, Class 10, contactor mounting, main circuit: screw terminal, auxiliary circuit: screw terminal, manual-automatic-reset. Article Number: 3RU1146-4MB0.

Key Specifications

Electrical Ratings:

• Current range: 80-100 A
• Application: Motor protection
• Class: 10
• Reset function: Manual-Automatic-Reset

Construction Features:

• Size: S3
• Mounting: Contactor mounting
• Main circuit: Screw terminal connections
• Auxiliary circuit: Screw terminal connections
• Overload protection for motor circuits

Physical Specifications

• Net weight: 0.585 kg
• Packaging dimensions: 76 × 112 × 131 mm
• Country of origin: Germany

Product Identifiers

• EAN: 4011209300798
• UPC: 754554412603

Compliance Information

• RoHS compliant since 01.07.2006
• WEEE (2012/19/EU) Take-Back Obligation: Yes

REACH Regulation Information There is currently no information on SVHC (Substances of Very High Concern) from the supply chain and established procedures for screening products for Substances of Very High Concern. Products are regularly compared with information from upstream users regarding substances indicated in the candidate list in accordance with REACH regulation requirements. Information will be updated as new findings become available.
