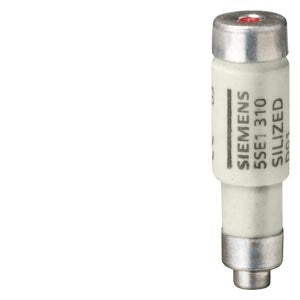

Siemens Neozed Fuse-link, 400V, 10A

Product Overview

SKU 5SE1310 - NEOZED fuse-link, D01, 10 A, gR, Un AC: 400 V, Un DC: 250 V, SILIZED. This Siemens SILIZED semiconductor protection fuse is specifically designed to protect power semiconductors from the effects of short circuits, providing extremely fast-acting protection for electronic installations.

Key Features & Specifications

• Electrical Ratings: 10A rated current, 400V AC / 250V DC rated voltage
• Size: D01 (NEOZED size classification)
• Operating Class: gR (semiconductor protection - full range converter protection)
• Technology: SILIZED design for semiconductor applications
• Power Loss: 6.9W at rated current value
• Color Code: Red for easy identification
• Response: Quick-acting with extremely fast switch-off characteristics

Performance Characteristics

• Temperature Range: -5°C minimum operating temperature
• Ultra-Fast Protection: Extremely fast-acting switch-off characteristic compared to conventional LV HRC fuses
• Semiconductor Specific: Designed specifically for power semiconductor protection
• Reliable Operation: Power semiconductors are reliably protected even in short-circuit conditions
• Precision: Siemens quality standard ensures very good characteristic curve accuracy

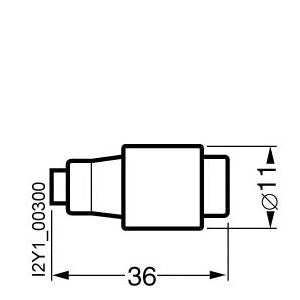

Physical Specifications

• Net Weight: 0.007 kg (7g ultralight design)
• Packaging Dimension: 40.00 x 113.00 x 12.00 mm
• Packaging Quantity: 1 Piece

Applications

• Power Semiconductor Protection: Primary application for protecting power semiconductors from short circuit effects
• Frequency Converters: Fuses in the input circuit and DC link of frequency converters
• UPS Systems: Protection in uninterruptible power supply systems
• Motor Soft-Starters: Protection for soft-starting motor applications
• Electronic Installations: General semiconductor protection in electronic systems
• Industrial Electronics: Protection of sensitive electronic components in industrial applications

System Benefits

Part of the SENTRON protective components for electronic installations, the SILIZED fuse system offers:

• Effective protection for personnel, equipment and plants with reliable shutdown
• Enhanced safety in overload and short circuit conditions
• Superior performance compared to conventional fuses for semiconductor applications
• Available in both DIAZED and NEOZED designs for application flexibility
• Proven Siemens quality with excellent characteristic curve fidelity

Technical Advantages

• SITOR Technology: Advanced fuse technology specifically for semiconductor protection
• Fast Response: Critical for protecting sensitive semiconductor devices
• High Precision: Consistent performance characteristics for reliable protection
• Specialized Design: Engineered specifically for electronic and power electronic applications

Additional Information

• Country of Origin: Slovenia
• EAN: 4001869298665
• Article Number: 5SE1310
• RoHS Compliance: Since: 01.06.2006
• WEEE Take-Back Obligation: Yes
