Siemens N-Connect male termination impedance, 2.4 and 5GHz

Product Overview

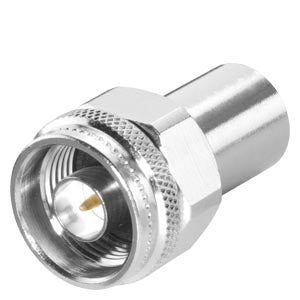

The TI795-1N is an N-Connect male termination impedance component designed for IWLAN (Industrial Wireless LAN) applications. This 50-ohm terminating resistor operates across 2.4 GHz and 5 GHz frequency bands with an extended range from 0 to 6 GHz, providing proper signal termination for RCoax cable systems and wireless communication networks.

Key Features & Technical Specifications

Impedance & Frequency Characteristics

• 50-ohm termination impedance for proper signal matching
• Dual-band support: 2.4 GHz and 5 GHz
• Extended frequency range: 0 to 6 GHz
• N-Connect male connector for secure connections
• Net Weight: 0.045 kg

Environmental Protection

• IP65 protection rating for dust and water resistance
• Operating temperature: -40°C to +70°C
• Storage temperature: -40°C to +70°C
• Suitable for demanding industrial environments

Industrial Applications

• Essential component for IWLAN RCoax cable systems
• Prevents signal reflections and ensures proper impedance matching
• Compatible with SIMATIC NET IWLAN components
• Used in SCALANCE W wireless infrastructure
• Supports industrial automation wireless communication networks

Compliance & Standards

• RoHS Compliant (since October 1, 2006)
• Professional-grade RF termination standards
• Country of origin: Germany

Product Identification

• Article Number: 6GK5795-1TN00-1AA0
• EAN: 4018359299323
• UPC: 662643297171

REACH Compliance Information This product contains Lead in concentrations higher than 0.1% w/w. Based on current information, these substances do not pose risks when the product is used as intended, including disposal.

Export Control Information

• Export Control: AL: N / ECCN: N
