Description
xSiemens SIRIUS ACT 3SU1050-1BA20-0AA0 red pushbutton with a mushroom diameter of 40mm. The pull-to-unlatch mechanism is renowned for its efficiency and non-fuss. Installation is readily achieved as the hole diameter is 22 mm. Mushroom pushbutton lends itself well to all Automation sectors due to the high protection rating IP66/67/69K and NEMA 1, 2, 3, 3R, 4, 4X, 12, 13.
Specifications
x| IP Rating | IP66 |
| IP Rating Detailed | IP66 IP67, IP69(IP69K) degree of protection NEMA rating 1, 2, 3, 3R, 4, 4X, 12, 13 shock resistance according to IEC 60068 |
| Compliance/Standards | IEC 60721, IEC 60068-2, IEC 81346-2 |

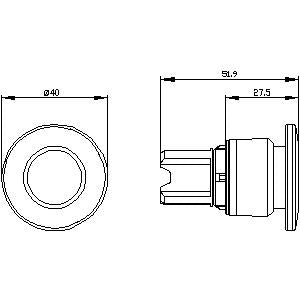

| Diameter (mm) | 40.0mm |
| Part Width (mm) | 30,00mm |
| Part Height (mm) | 40,00mm |
| Part Depth (mm) | 30,00mm |
| Weight (g) | 0,061 Kg |
| Max Frequency | 18001 /h |
| description | Mushroom pushbutton, 22 mm, round, metal, shiny, red, 40 mm, latching, Pull-to-unlatch mechanism |
| country_of_origin | China |
