Product Overview

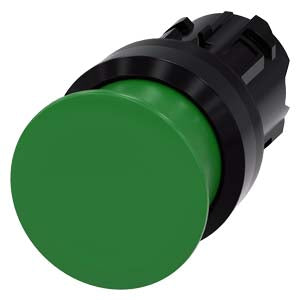

The SIRIUS ACT 3SU1000-1AD40-0AA0 is a premium 22 mm round mushroom pushbutton designed for industrial control applications. This green, plastic 30 mm diameter mushroom momentary contact pushbutton combines robust construction with reliable performance for demanding industrial environments.

Key Features

Design & Construction:

• 22 mm round mounting diameter with 30 mm mushroom head design
• High-grade plastic front ring and collar construction
• Green actuator mushroom head with black plastic front ring
• Momentary contact operation (normally open)
• Snap-on mounting system without tools required
• Large actuating surface for easy operation

Technical Specifications:

• Protection Rating: IP66, IP67, IP69K (front face)
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +80°C
• Mounting Hole Diameter: 22.3 mm
• Mushroom Head Diameter: 30 mm
• Contact Configuration: 1 NO (Normally Open)
• Electrical Rating: 10 A at 400 V AC
• Mechanical Life: 10 million operations
• Vibration Resistance: 10-500 Hz, 5g (IEC 60068-2-6)

Certifications & Standards:

• UL, CSA, CE marked
• IEC 60947-5-1 compliant
• RoHS compliant since 01.10.2014
• REACH regulation compliant

Applications

Ideal for use in:

• Start/Run operations for large machinery
• High-visibility "go" or "safe" control functions
• Heavy-duty industrial equipment interfaces
• Process control systems requiring large actuating surface
• Operations requiring easy palm or fist activation
• Maintenance and service start operations
• Green = go/start/safe indication with tactile confirmation

Mounting & Installation

• Front Panel Mounting: Suitable for panel thicknesses up to 8 mm
• Tool-Free Installation: Snap-on holder system
• Contact Modules: Compatible with 3SU14 series contact and LED modules
• Modular Design: Supports stacking of up to 2 contact modules
• Large Actuating Area: 30 mm diameter mushroom head for enhanced ergonomics

Series Compatibility

Part of the comprehensive SIRIUS ACT 3SU1 command and signaling device family, ensuring:

• Consistent design language across installations
• Interchangeable components and modules
• Extensive accessory ecosystem
• Global availability and support

Technical Documentation:

• Net Weight: 0.021 kg
• Country of Origin: China
• EAN: 4011209956193
• Package Dimensions: 30 x 65 x 30 mm
