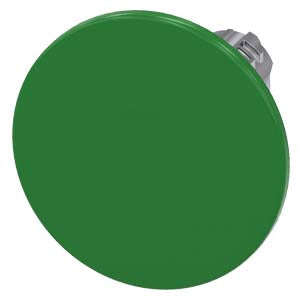

Siemens Mushroom pushbutton, 22mm, round, green, 60mm
View on Siemens 📄 Datasheet
Siemens

Siemens Mushroom pushbutton, 22mm, round, green, 60mm Part number 3SU1050-1CD40-0AA0

EAN / Barcode 4011209967656
Product Type Control Panel
Product Class Front element for mushroom push-button
ETIM Class Front element for mushroom push-button
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD🌱 EcoTech Profile

Product Description

Product Overview

Mushroom pushbutton, 22 mm, round, metal, shiny, green, 60 mm, momentary contact type. Part of the SIRIUS ACT series, this mushroom pushbutton features a large 60mm handle for comfortable operation with your whole hand. Under the SIRIUS ACT brand name, Siemens offers a unique portfolio of commanding and signaling devices with worldwide product approvals in four modern design series made of robust real metal and high-quality plastic.

Article Number: 3SU1050-1CD40-0AA0

Technical Specifications:

  • Button Color: Green
  • Design: Round lens design
  • Cap Diameter: 60 mm
  • Hole Diameter: 22.3 mm
  • Contact Type: Momentary contact
  • Button Design: High profile
  • Front Ring: Metal with front ring
  • Protection Rating: IP67/IP69K
  • NEMA Rating: 13
  • Unlocking Type: Without unlocking mechanism

Physical Properties:

  • Net Weight: 0.055 kg
  • Packaging Dimensions: 60.00 x 80.00 x 60.00 mm
  • EAN: 4011209967656
  • Country of Origin: China
  • Packaging Quantity: 1 piece

Compliance & Environmental:

  • Product Lifecycle: PM300: Active Product
  • RoHS Compliance: Since 01.10.2014
  • Export Control: AL: N / ECCN: N
  • WEEE Take-Back Obligation: Yes
  • REACH Article 33: Compliant - No SVHC substances currently identified

Classification:

  • eClass: 27-37-12-12 (versions 6, 7.1, 8, 9, 9.1, 12, 14)
  • ETIM: EC001038 (versions 7, 8, 9)
  • UNSPSC: 39-12-22-21

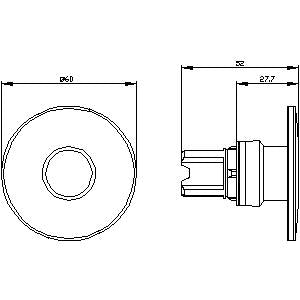

Download existing graphical data for this product:

Technical Specifications

Colour buttonGreen
Colour front ringOther
Compliance/StandardsIEC 60721, IEC 60068-2, IEC 81346-2
Construction type lensRound
country_of_originChina
Degree of protection (IP)IP67/IP69K
Degree of protection (NEMA)Other
descriptionMushroom pushbutton, 22 mm, round, metal, shiny, green, 60 mm, momentary contact type
Diameter (mm)60.0mm
Diameter cap60 mm
Height opening27.5 mm
Hole diameter22.3 mm
IP RatingIP66
IP Rating DetailedIP66 IP67, IP69(IP69K) degree of protection NEMA rating 1, 2, 3, 3R, 4, 4X, 12, 13 shock resistance according to IEC 60068
Material front ringMetal
Max Frequency36001 /h
Part Depth (mm)60,00mm
Part Height (mm)80,00mm
Part Width (mm)60,00mm
Spring-returnYes
Weight (g)0,055 Kg
Width opening60 mm
With front ringYes
