Product Overview

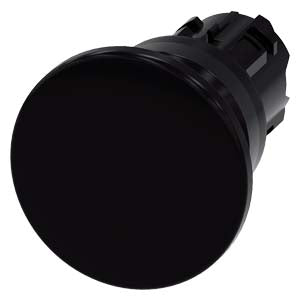

The SIRIUS ACT 3SU1000-1BD10-0AA0 is a premium 22 mm round mushroom pushbutton designed for industrial control applications. This black, plastic 40 mm diameter mushroom momentary contact pushbutton combines robust construction with reliable performance for demanding industrial environments.

Key Features

Design & Construction:

• 22 mm round mounting diameter with large 40 mm mushroom head design
• High-grade plastic front ring and collar construction
• Black actuator mushroom head with black plastic front ring
• Momentary contact operation (normally open)
• Snap-on mounting system without tools required
• Extra-large actuating surface for maximum visibility and ease of operation

Technical Specifications:

• Protection Rating: IP66, IP67, IP69K (front face)
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +80°C
• Mounting Hole Diameter: 22.3 mm
• Mushroom Head Diameter: 40 mm
• Contact Configuration: 1 NO (Normally Open)
• Electrical Rating: 10 A at 400 V AC
• Mechanical Life: 10 million operations
• Vibration Resistance: 10-500 Hz, 5g (IEC 60068-2-6)

Certifications & Standards:

• UL, CSA, CE marked
• IEC 60947-5-1 compliant
• RoHS compliant since 01.10.2014
• REACH regulation compliant

Applications

Ideal for use in:

• Heavy-duty machinery start operations requiring maximum visibility
• Critical control functions in harsh industrial environments
• Large-scale manufacturing equipment interfaces
• Process control systems requiring extra-large actuating surface
• Operations requiring activation with protective gloves or in low-light conditions
• Maintenance and service operations where high visibility is essential
• General purpose momentary control functions requiring enhanced ergonomics

Mounting & Installation

• Front Panel Mounting: Suitable for panel thicknesses up to 8 mm
• Tool-Free Installation: Snap-on holder system
• Contact Modules: Compatible with 3SU14 series contact and LED modules
• Modular Design: Supports stacking of up to 2 contact modules
• Extra-Large Actuating Area: 40 mm diameter mushroom head for maximum ergonomics and visibility

Series Compatibility

Part of the comprehensive SIRIUS ACT 3SU1 command and signaling device family, ensuring:

• Consistent design language across installations
• Interchangeable components and modules
• Extensive accessory ecosystem
• Global availability and support

Technical Documentation:

• Net Weight: 0.024 kg
• Country of Origin: China
• EAN: 4011209956285
• Package Dimensions: 50 x 100 x 50 mm
