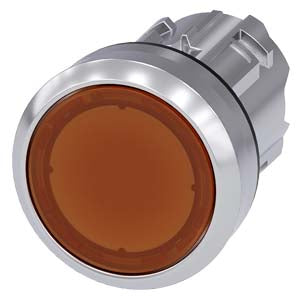

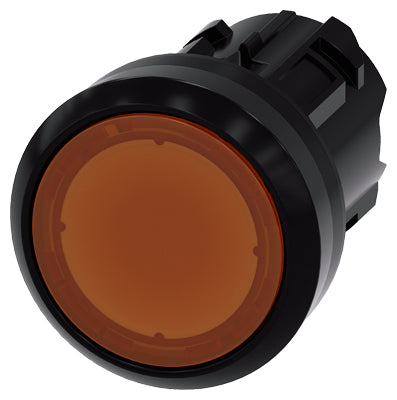

Siemens Momentary pushbutton head, round, amber, 22mm, IP66/67/69 Part number 3SU1001-0AB00-0AA0

Product Overview

The Siemens 3SU1001-0AB00-0AA0 is a SIRIUS ACT illuminated push-button head, designed for 22 mm cut-out mounting. It features an amber coloured round actuator, flat design, a momentary contact type (typically NO) and robust protection up to IP66/IP67/IP69K, making it suitable for industrial control panels and harsh environmental conditions.

Key Features

• Illuminated push-button head from the Siemens SIRIUS ACT 3SU10 series
• Cut-out diameter: 22 mm, round actuator with 29.5 mm outer diameter
• Amber coloured actuator for status signaling
• Momentary contact (flat push type) — designed for single push action
• High ingress protection: IP66, IP67, IP69K — suitable for dusty, wet and high-pressure cleaning environments
• Shock and vibration resistant: tested for 15 g/11 ms shock and 10 Hz-500 Hz vibration (5 g)
• Compact and lightweight: approx. 0.015 kg

Technical Specifications

• Product Series: SIRIUS ACT – 3SU10
• Article Number: 3SU1001-0AB00-0AA0
• Actuator Colour: Amber
• Mounting Cut-out Diameter: 22.3 mm nominal
• Outer Diameter of Actuator: 29.5 mm
• Mounting Depth: approx. 24.3 mm
• Protection Class: IP66 / IP67 / IP69K
• Ambient Operating Temperature: –25 °C … +70 °C
• Mechanical Service Life: approx. 3 000 000 operations

Compliance & Certifications

• Designed and manufactured by Siemens for industrial control and signalling applications
• Meets IEC/EN standards for push-buttons and actuator elements in industrial environments

Applications

Suitable for control panels, machine operator stations, industrial automation cabinets and environments where high durability and environmental protection are required. Commonly used to signal machine states, operator actions, or system statuses in manufacturing, infrastructure, and process-automation applications.
