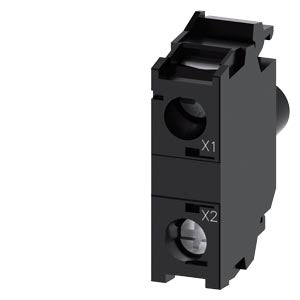

Siemens LED module, screw terminal, amber, 24VAC/DC

Product Overview

LED module with integrated LED 24 V AC/DC, amber, screw terminal, for front plate mounting from the SIRIUS ACT series. This energy-efficient LED illumination module provides high-luminosity amber lighting for pushbuttons and indicator lights, utilizing advanced LED technology for reliable visual indication in industrial automation applications.

Key Features

• Integrated LED technology for superior illumination
• Amber color for clear visual indication
• 24 V AC/DC dual voltage capability
• Screw terminal connection for reliable wiring
• Front plate mounting configuration
• Energy-efficient LED technology with extended lifespan
• High luminosity output for excellent visibility
• Part of the SIRIUS ACT portfolio with worldwide product approvals
• Innovative snap-on concept for easy installation with one hand and without special tools

Technical Specifications

• LED Color: Amber

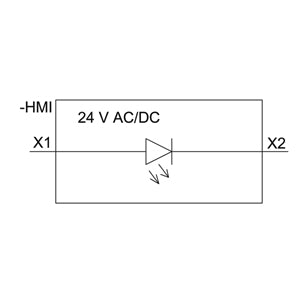

• Operating Voltage: 24 V AC/DC
• Frequency: 50/60 Hz (AC operation)
• Connection Type: Screw terminal
• Mounting Method: Front plate mounting
• Surge Voltage Resistance: 4 kV rated value

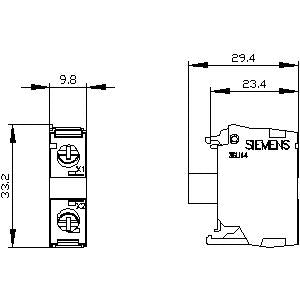

• Dimensions: 33.2mm H x 9.8mm W x 29.4mm D
• Net Weight: 0.009 kg
• Packaging Dimensions: 73.00 x 101.00 x 15.00 mm
• Country of Origin: Czech Republic
• EAN: 4011209944237
• UPC: 804766073441

Compliance & Standards

• RoHS compliant since 01.10.2014
• WEEE (2012/19/EU) Take-Back Obligation: Yes
• Export Control Regulations: AL: N / ECCN: N
• REACH Article 33 compliance for specific substances

Applications This LED module is designed for illuminating SIRIUS ACT pushbuttons and indicator lights in industrial automation systems. Perfect for status indication, process monitoring, alarm signaling, and machine operation feedback. The amber color is ideal for warning indications, process status, and intermediate conditions requiring clear visual communication.

LED Technology Benefits

• Energy efficiency: Significantly lower power consumption compared to traditional incandescent bulbs
• Long lifespan: Extended operational life reduces maintenance requirements
• Instant illumination: No warm-up time for immediate visual feedback
• Vibration resistance: Solid-state technology withstands industrial environments
• Temperature stability: Consistent performance across wide temperature ranges
• High reliability: Reduced failure rates compared to conventional lighting

Mounting & Installation

• Front plate mounting design for standard panel installations
• Snap-on concept allows one-hand installation
• No special tools required for assembly
• Compatible with SIRIUS ACT pushbuttons and indicator lights
• Secure mounting prevents accidental disconnection

Amber LED Advantages

• Warning indication: Industry-standard color for caution and warning signals
• Intermediate status: Perfect for transitional states and process monitoring
• High visibility: Excellent contrast and visibility in various lighting conditions
• Eye comfort: Less strain than high-intensity colors for continuous monitoring
• Universal recognition: Globally understood warning and status indication

Electrical Features

• Dual voltage capability: 24 V AC/DC operation for flexible power supply options
• Surge protection: 4 kV surge voltage resistance for industrial environments
• Low current consumption: Energy-efficient operation reduces system power requirements
• Screw terminal connection: Secure and reliable electrical connections
• Voltage tolerance: Stable operation across voltage variations

Integration Capabilities

• SIRIUS ACT compatibility: Seamless integration with SIRIUS ACT pushbuttons and indicators
• System flexibility: Easy incorporation into existing control panels
• Modular design: Simple replacement and maintenance procedures
• Universal mounting: Standard front plate configuration
• Panel efficiency: Compact design maximizes panel space utilization

Visual Performance

• High luminosity: Excellent brightness for clear visibility
• Uniform illumination: Even light distribution for consistent appearance
• Color consistency: Reliable amber output throughout operational life
• Contrast optimization: Clear distinction from other panel indicators
• Professional appearance: Clean, modern aesthetic for industrial applications

Product Classification

• eClass: 27-37-12-09
• ETIM: EC000204
• UNSPSC: 39-12-15-44

Download existing graphical data for this product:

• Product Datasheet (PDF)
• Product Details and Documentation
