Siemens Miniature circuit breaker, 1-pole, 230/400V, 6kA, 32A
View on Siemens 📄 Datasheet
Siemens

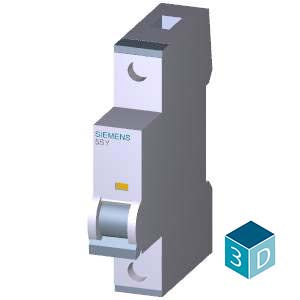

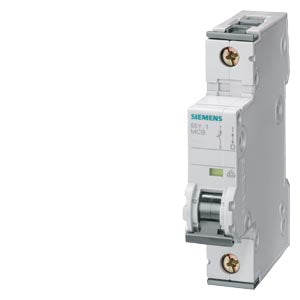

Siemens Miniature circuit breaker, 1-pole, 230/400V, 6kA, 32A Part number 5SY6132-7

EAN / Barcode 4001869246109
Product Type Control Panel
Product Class Miniature circuit breaker (MCB)
ETIM Class Miniature circuit breaker (MCB)
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD

Product Description

Product Overview

The Siemens 5SY6132-7 is a high-performance miniature circuit breaker designed for reliable electrical protection in commercial and industrial applications. This 1-pole circuit breaker features a 32 A current rating with 230/400 V operational voltage and 6 kA breaking capacity, making it ideal for protecting medium to high-current single-phase electrical circuits and equipment from overloads and short circuits.

Key Features

  • 6 kA Breaking Capacity: Reliable protection against fault currents in standard applications
  • 1-Pole Configuration: Provides protection for single-phase electrical systems and individual circuits
  • C-Type Characteristic: Optimized for general applications with moderate inrush currents
  • Medium-High Current Rating: 32 A rating suitable for motor circuits and medium-load applications

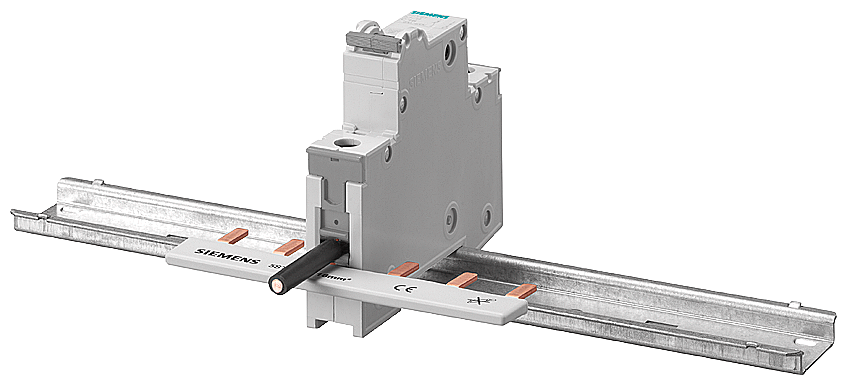

  • Compact Design: Space-efficient construction suitable for standard DIN rail mounting (D=70 mm)
  • German Engineering: Manufactured in Germany ensuring premium quality and reliability

Technical Specifications

  • Current Rating: 32 A
  • Voltage Rating: 230/400 V
  • Breaking Capacity: 6 kA
  • Number of Poles: 1
  • Trip Characteristic: C-type
  • Net Weight: 0.153 kg
  • Depth: 70 mm (D=70 mm)
  • Country of Origin: Germany
  • EAN: 4001869246109

Applications

This miniature circuit breaker is particularly suitable for:

  • Motor protection circuits
  • Medium-load single-phase equipment
  • Industrial machinery circuits
  • Heating elements
  • Power distribution systems
  • Commercial electrical installations
  • Medium-load lighting circuits
  • HVAC equipment protection
  • Manufacturing equipment circuits

Compliance & Certifications

  • RoHS Compliance: Compliant since January 1, 2006
  • WEEE Directive: Subject to take-back obligations under directive 2012/19/EU
  • REACH Regulation: Contains lead in concentrations higher than 0.1% w/w as per Article 33 requirements
  • Export Control: AL: N / ECCN: N
  • Product Class: B - Return restricted, contact Siemens partner for returns

Product Classification

  • eClass: 27-14-19-01 (versions 6-14)
  • ETIM: EC000042 (versions 7-9)
  • UNSPSC: 39-12-16-03
  • IDEA: 4897
  • Product Group: 5503

Download existing graphical data for this product:

Technical Specifications

Additional equipment possibleYes
Ambient temperature during operating-25 °C
Built-in depth70 mm
Connectable conductor cross section multi-wired35 mm²
Connectable conductor cross section solid-core0.75 mm²
Current limiting class3
Degree of protection (IP)IP20
Frequency50 Hz
Number of poles (total)1
Number of protected poles1
Over voltage category3
Pollution degree3
Power loss2.6 W
Rated current32 A
Rated impulse withstand voltage Uimp4 kV
Rated insulation voltage Ui440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15 kA
Rated voltage400 V
Release characteristicC
Voltage typeAC
Width in number of modular spacings1

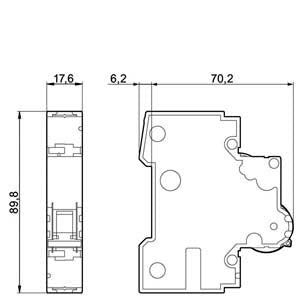

Part Width21 mm
Part Height93 mm
Part Depth83 mm
Weight153 g
Country of OriginGermany
View complete specifications on Siemens
