Siemens LV HRC Fuse element, live grip lugs, 100A

Product Overview

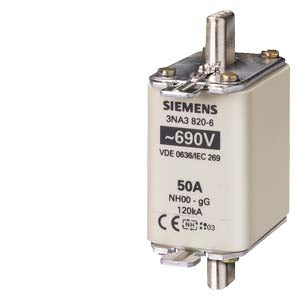

The Siemens 3NA3830-6 is a premium low voltage HRC (High Rupturing Capacity) fuse element designed for NH00 fuse systems. This 100A rated fuse provides exceptional protection for AC circuits up to 690V and DC circuits up to 250V, making it the ideal choice for demanding industrial and commercial electrical installations requiring high current capacity and enhanced voltage ratings.

Key Features:

• Rated current: 100A with gG operating class for general purpose applications
• Enhanced voltage ratings: 690V AC / 250V DC
• High breaking capacity of 120kA (AC) ensures reliable tripping under severe fault conditions
• Front indicator provides immediate visual confirmation when the fuse has operated
• Live grip lugs for secure handling during installation and maintenance
• NH00 size designation for versatile installations
• Silver-plated contacts resist corrosion for reliable signal transfer
• IP20 rating provides touch-proof protection
• Non-corroding, silver-plated switching contact for enhanced durability

Applications: Perfect for selective line protection and system protection in functional buildings, industrial facilities, and power supply installations requiring higher voltage ratings. The gG operating class makes it suitable for cable and line protection applications, providing dependable overcurrent protection for high-power motors, transformers, and general electrical circuits requiring 100A current capacity.

Technical Advantages:

• Superior current limitation reduces stress on downstream equipment
• Finely graded selectivity level for optimal cable cross-section utilization
• Front-face red indicator signals clearly when the fuse cuts out
• Enhanced safety with live grip lugs for secure handling
• Reliable performance in complex high-voltage power supply applications
• Minimal downtime due to dependable overcurrent protection
• Preferably vertical mounting position for optimal performance
• Better current limitation compared to miniature circuit breakers

Standards Compliance: Manufactured to DIN VDE 0636, DIN VDE 0636-2, and CSA 22.2 No. 106 standards. Complies with IEC EN 60269 fuse standard ensuring international compatibility and safety requirements for high-voltage applications.

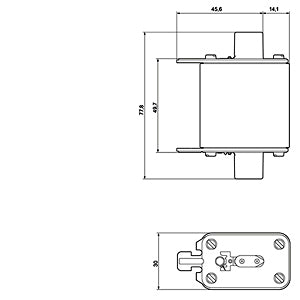

Physical Specifications:

• Net weight: 0.200 kg (0.26 kg with packaging)
• Packaging dimensions: 83 x 95 x 67 mm
• Country of origin: Greece
• EAN: 4001869057248
• UPC: 754554307619

Environmental Compliance: RoHS compliant since September 1, 2006. WEEE (2012/19/EU) take-back obligation applies. Contains lead as disclosed under REACH Article 33 requirements. Return restricted product classification - please contact your Siemens partner for return procedures.

Shipping Details:

• Minimum order quantity: 3 pieces
• Product lifecycle: PM300 Active Product

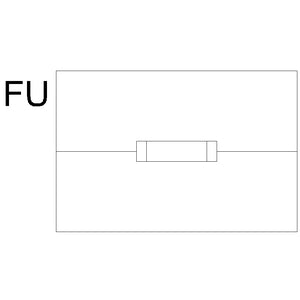

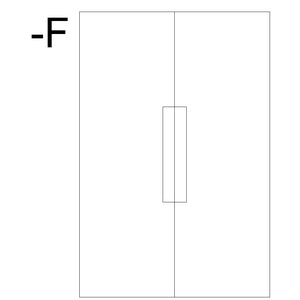

Download existing graphical data for this product:

• Product Datasheet PDF
• Technical Data Sheet
• CAD Models (Login required)
• Product Specifications
