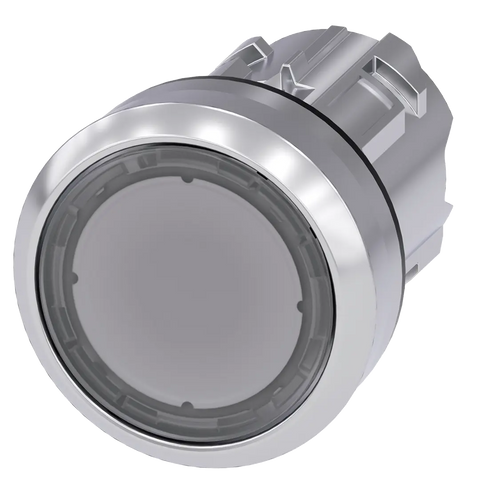

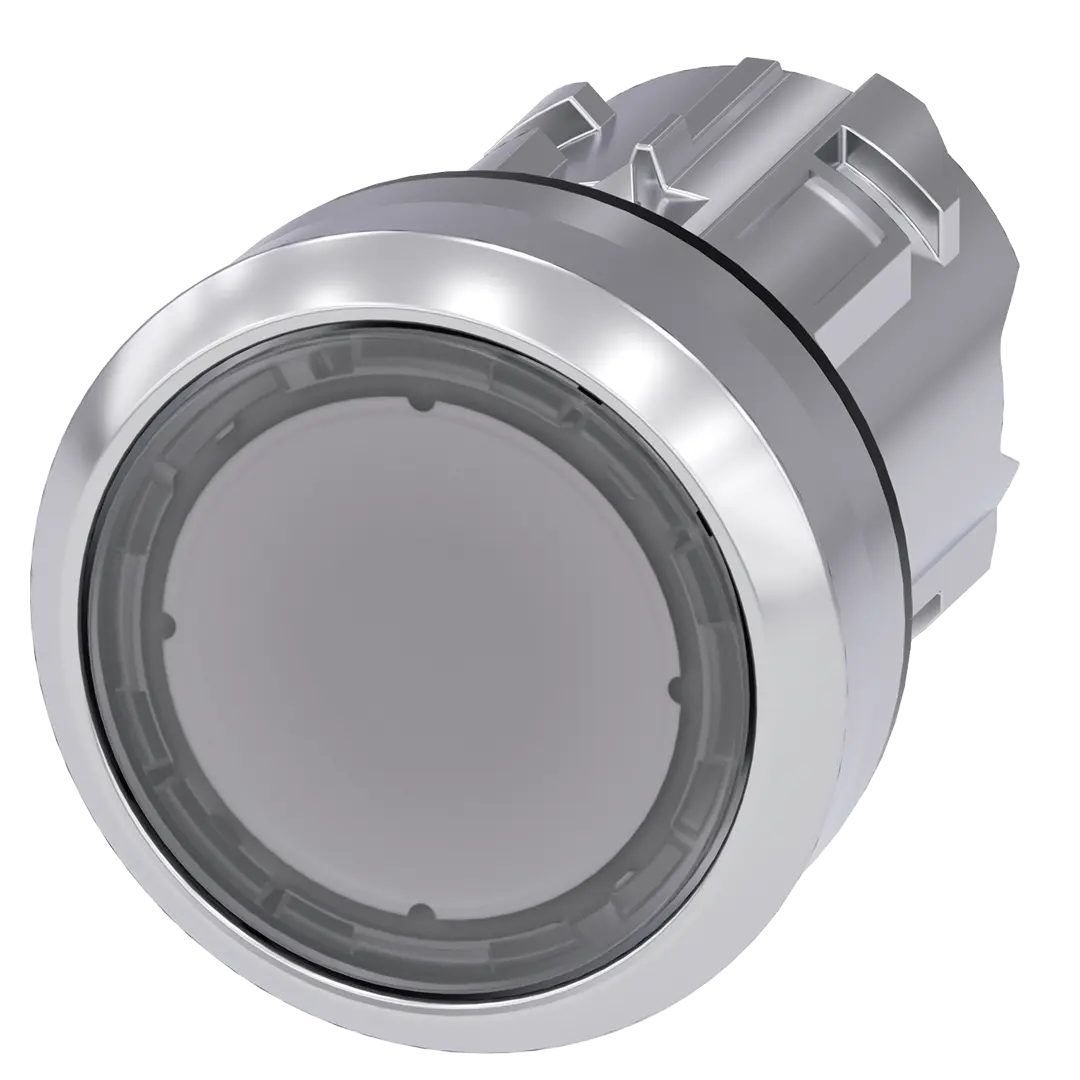

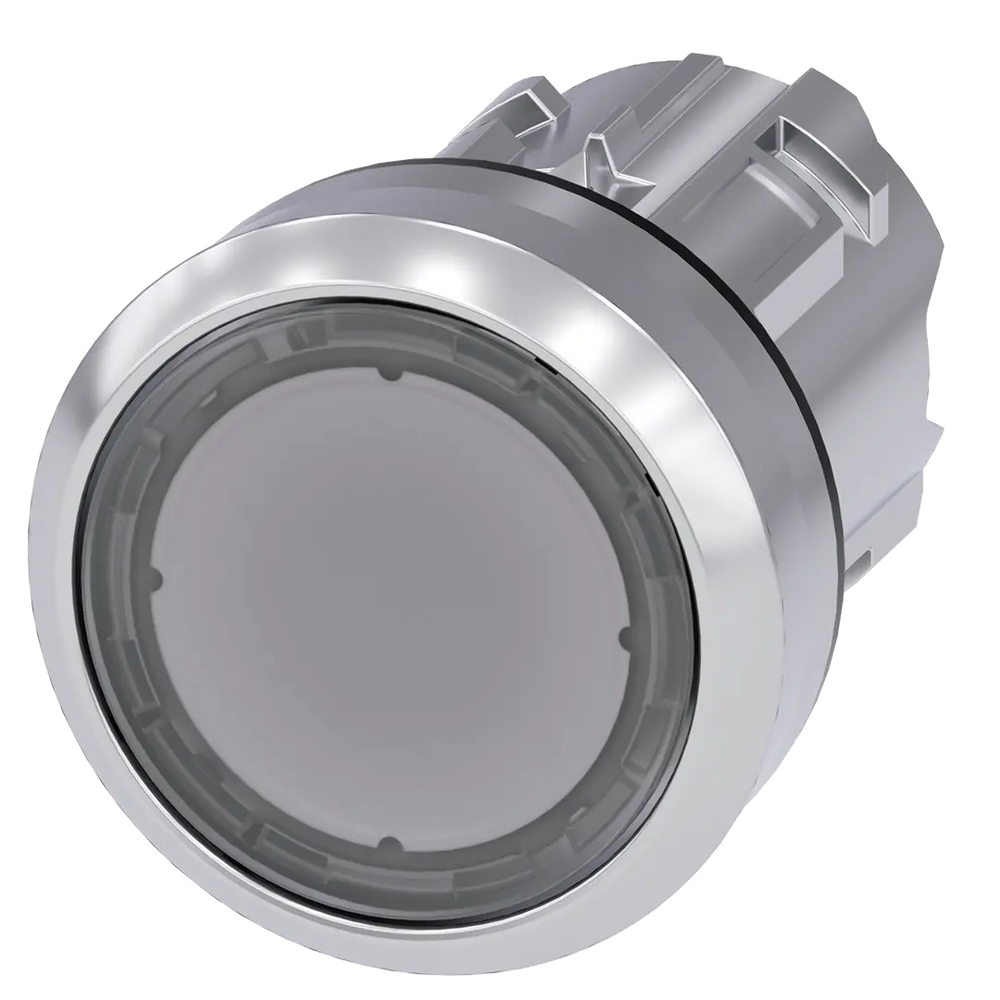

Siemens lluminated pushbutton, round, clear, flat, 22mm Part number 3SU1051-0AB70-0AA0

EAN / Barcode 4011209965737
Product Type Control Panel
Product Class Front element for push button
ETIM Class Front element for push button
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD🌱 EcoTech Profile

Product Description

Siemens SIRIUS ACT 3SU1051-0AB70-0AA0 pushbutton is distinguished by its flush and ergonomic design. Installation is easily achieved as the hole diameter is 22 mm. Siemens SIRIUS ACT pushbutton is rated with a large range NEMA. As well as the following IP66/67/69K ratings.

This pushbutton is the clear, round, flush button, and provides a clean look with a shiny metal collar. The unit provides a momentary contact type.

Technical Specifications

Colour buttonColourless
Colour front ringOther
Compliance/StandardsIEC 60721, IEC 60068-2, IEC 81346-2
Construction type lensRound
country_of_originChina
Degree of protection (IP), front sideOther
Degree of protection (NEMA), front sideOther
descriptionIlluminated pushbutton, 22 mm, round, metal, shiny, clear, pushbutton, flat, momentary contact type
Diameter (mm)295.0mm
Hole diameter22.3 mm
IP RatingIP66
IP Rating DetailedIP66 IP67, IP69(IP69K) degree of protection NEMA rating 1, 2, 3, 3R, 4, 4X, 12, 13 shock resistance according to IEC 60068
Material front ringMetal
Max Frequency36001 /h
Number of command positions1
Part Depth (mm)40,00mm
Part Height (mm)60,00mm
Part Width (mm)40,00mm
Spring-returnYes
Suitable for illuminationYes
Type of buttonFlat
Weight (g)0,036 Kg
With front ringYes
View complete specifications on Siemens
