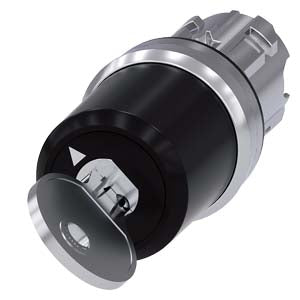

Siemens Key-operated switch, 22mm, metal, lock number E7(VW)

Product Overview

Siemens keyswitch, B, 22 mm, round, metal, shiny, lock number E7 (VW), without key, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h, key removal O+I. Part of the SIRIUS ACT series, this BKS (Betriebsschließung) key-operated switch is designed for higher demands on access security. The E7 (VW) lock system is specifically developed for automotive and Volkswagen applications, providing secure switching control with specialized key compatibility.

Article Number: 3SU1050-5SF11-0AA0

Technical Specifications:

• Switch Type: BKS (B-type) key-operated switch
• Design: Round, flush mount
• Material: Metal, shiny finish

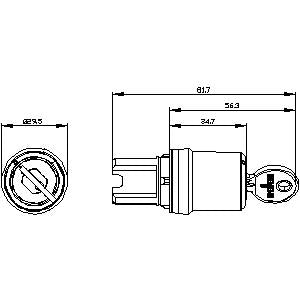

• Mounting Diameter: 22.3 mm
• Opening Width: 29.5 mm
• Opening Height: 56.3 mm
• Switch Positions: 2 positions (O-I)
• Contact Type: Latching operation (stay-put/maintained)
• Actuating Angle: 90°
• Key Positions: 10:30h/13:30h
• Key Removal: Both positions (O+I)
• Lock Number: E7 (VW) - Volkswagen automotive specification
• Key Supply: Without key (key sold separately)
• Lock System: BKS professional grade

Protection & Ratings:

• Protection Rating: IP67/IP69K
• NEMA Rating: 4X
• Operating Temperature: -25 to 70°C
• Storage Temperature: -40 to 80°C
• Relative Humidity: 10 to 95%

Physical Properties:

• Net Weight: 0.139 kg
• Packaging Dimensions: 98.00 x 48.00 x 35.00 mm
• EAN: 4011209948617
• UPC: 804766068379
• Country of Origin: Czech Republic
• Packaging Quantity: 1 piece

Specialized Features:

• BKS Lock System: Professional-grade security for demanding applications
• Automotive Grade: E7 (VW) specification for automotive industry compliance
• Dual Key Removal: Key can be removed from both O and I positions for maximum security flexibility
• Latching Operation: Maintains selected position until manually switched
• Without Key Supply: Allows integration with existing key management systems
• Metal Construction: Durable shiny metal finish for industrial environments
• 90° Switching Angle: Clear, positive switching action

Applications:

• Automotive Systems: Volkswagen and automotive applications requiring E7 lock compatibility
• Industrial Control: High-security switching for critical equipment
• Access Control Systems: Integration with existing automotive key systems
• Security Applications: Professional-grade access control where dual key removal is required
• Maintenance Mode Control: Secure switching between operational and service modes
• Fleet Management: Standardized switching across automotive equipment

Key Management:

• Compatible Keys: E7 (VW) specification keys (available separately)
• Key Removal Flexibility: Both switch positions allow key removal
• Security Level: Professional BKS system for enhanced protection
• Integration Ready: Designed for use with existing automotive key systems

Compliance & Environmental:

• Product Lifecycle: PM300: Active Product
• RoHS Compliance: Since 01.10.2014
• Export Control: AL: N / ECCN: N
• WEEE Take-Back Obligation: Yes
• REACH Article 33: Compliant - No SVHC substances currently identified

Classification:

• eClass: 27-37-12-13 (versions 6, 7.1, 8, 9, 9.1, 12, 14)
• ETIM: EC000222 (versions 7, 8, 9)
• UNSPSC: 39-12-22-21
