Siemens Industrial ethernet TP flexible cable, GP 4x 2 Part number 6XV1878-2B

EAN / Barcode 4019169853385
Product Type Control Panel
Product Class Data and communication cable
ETIM Class Data and communication cable
Back Order
💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

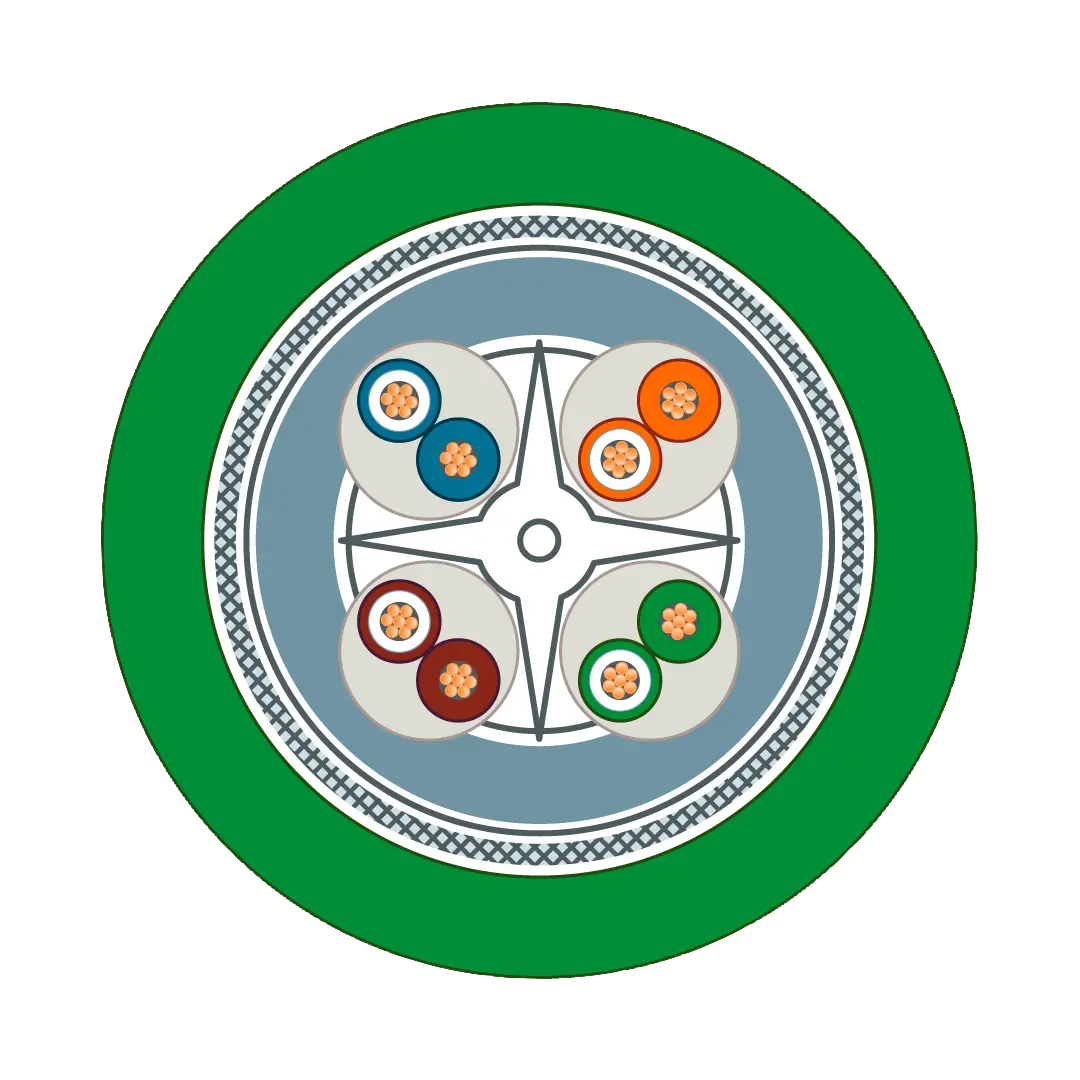

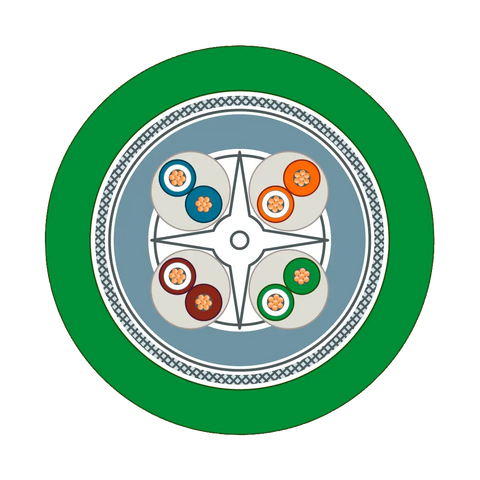

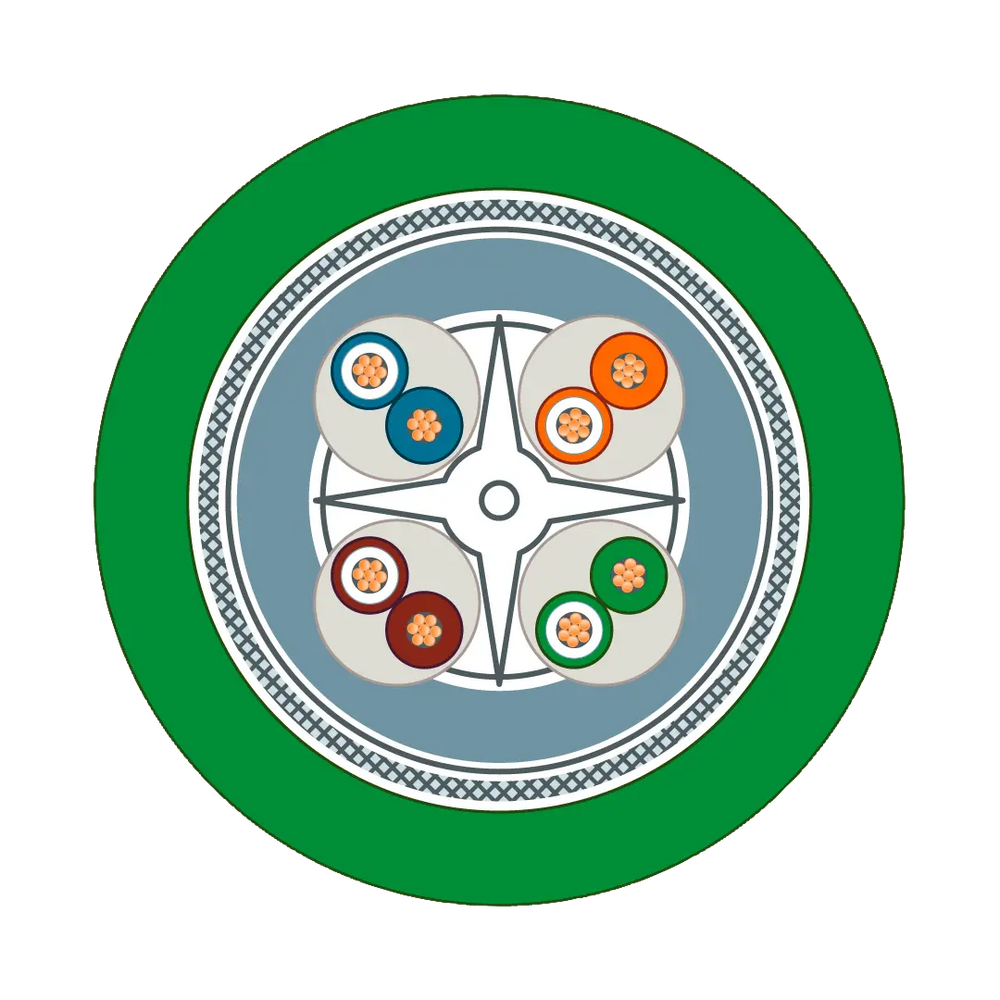

Flexible cable for quick assembly, for occasionally moving machine parts. Shielded TP installation cable (8-core) with flexible cores and is designed with overlapped aluminium-clad foil, sheathed in a braided screen of tinplated copper wires.

Technical Specifications

Category6
Colour outer sheathGreen
Compliance/StandardsIEC 60332-3, IEC 61784-5, IEC 60811-2, IEC 81346-2, EN 13501-6
Conductor surfaceBare
Core identificationColour
country_of_originGermany
descriptionIndustrial Ethernet FastConnect TP flexible cable GP 4x 2, TP installation CAT6A cable for connection to IE FC RJ45 plug 4x 2, AWG24, sold by the meter, delivery unit max. 1000 m minimum order quantity 20 m.
Diameter conductor0.6 mm
Min. permitted bending radius, moving application with forced guidance40 mm
Min. permitted bending radius, moving application/free movement40 mm
Min. permitted bending radius, stationary application/permanent installation40 mm
Number of cores8
Number of stranding elements4
NVP value68 %
Outer diameter approx.8 mm
Part Depth (mm)1,00mm
Part Height (mm)1,00mm
Part Width (mm)1,00mm
Permitted cable outer temperature after assembling without vibration80 °C
Permitted cable outer temperature during assembling/handling-40 °C
Reaction-to-fire according to EN 13501-6: ClassEca
Screen over strandingFoil + braiding
Stranding elementPairs
Weight (g)0,072 Kg
