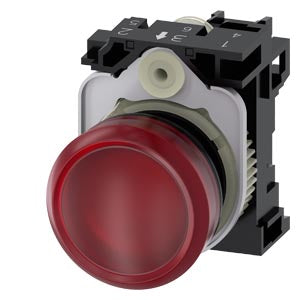

Siemens Indicator light with holder, integrated LED, red, 24V, 22mm Part number 3SU1102-6AA20-1AA0

Product Overview

Siemens Indicator light with holder, integrated LED, red, 24 V, 22 mm (3SU1102-6AA20-1AA0) is a compact SIRIUS ACT signalling device designed for front-panel mounting in industrial control systems. This complete unit combines a red LED indicator and holder into a single assembly, providing clear visual status indication for machine states, alarms and operating conditions in automation panels.

Key Features

• SIRIUS ACT indicator light with holder
• Integrated LED illumination element
• Red lens for alarm and status indication
• 24 V DC LED supply
• Standard 22 mm panel mounting
• Complete unit ready for installation
• High brightness and long LED service life
• Suitable for industrial control panels

Technical Specifications

• Article Number: 3SU1102-6AA20-1AA0
• Product Family: SIRIUS ACT indicator lights
• Device Type: Indicator light complete unit
• Indicator Type: LED
• Lens Colour: Red
• Illumination Voltage: 24 V DC
• Mounting Diameter: 22.3 mm
• Front Ring Colour: Black
• Material: Industrial-grade plastic
• Rated Insulation Voltage: 500 V
• Rated Surge Withstand Voltage: 6 kV
• Operating Temperature: –25 °C to +70 °C
• Storage Temperature: –40 °C to +80 °C
• Protection Rating: IP20 (device, mounted in enclosure)
• Installation Depth: approx. 49.7 mm
• Actuator Diameter: approx. 29.5 mm
• Weight: approx. 0.06 kg

Compliance & Certifications

• Manufactured to Siemens SIRIUS ACT industrial standards
• CE compliant
• RoHS compliant

Applications

The Siemens 3SU1102-6AA20-1AA0 indicator light is used to provide visual feedback in industrial control panels and machine interfaces. Typical uses include alarm indication, machine status display, power-on indication and fault signalling in automation systems, switchboards and production equipment.
