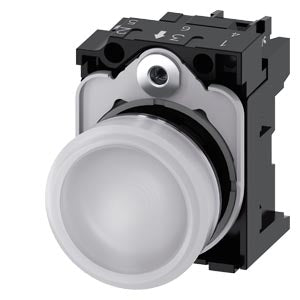

Siemens Indicator light, LED 24VAC/DC, 22mm, white
Log in to view pricing
Sign in with your trade account to access live pricing and place orders. New to Rubicon Industrial Technology? Create an account in seconds.
Product Description
Product Overview
Article Number: 3SU1152-6AA60-1AA0
Product Description: Indicator light, 22 mm, round, metal, shiny, white, lens, smooth, with holder, LED module with integrated LED 24 V AC/DC, screw terminal
Technical Specifications:
- Product Lifecycle (PLM): PM300:Active Product
- Net Weight: 0.058 kg
- Packaging Dimensions: 50.00 x 100.00 x 30.00 mm
- Quantity Unit: 1 Piece
- Packaging Quantity: 1
- EAN: 4011209957770
- UPC: 804766072550
- Country of Origin: Czech Republic
Compliance & Certifications:
- Export Control Regulations: AL : N / ECCN : N
- RoHS Compliance: Since 01.10.2014
- WEEE (2012/19/EU) Take-Back Obligation: Yes
- Product Class: A: Standard product which is a stock item could be returned within the returns guidelines/period
REACH Information: Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substances of the candidate list are contained in concentrations higher than 0.1% weight by weight (w/w):
- Lead monoxide (lead oxide)
- 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one
Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
Classification Standards:
- eClass: 27-37-12-23 (versions 6, 7.1, 8, 9, 9.1, 12, 14)
- ETIM: EC000272 (versions 7, 8, 9)
- IDEA: 4766 (version 4)
- UNSPSC: 39-12-15-34 (version 15)
Download existing graphical data for this product:
Additional Information
| IP Rating | IP66 |
| IP Rating Detailed | IP66 IP67, IP69(IP69K) protection class IP of the terminal IP20 degree of protection NEMA rating 1, 2, 3, 3R, 4, 4X, 12, 13 shock resistance according to IEC 60068 |
| Compliance/Standards | IEC 60721, IEC 60068-2, IEC 81346-2 |
| Diameter (mm) | 2945.0mm |
| Part Width (mm) | 50,00mm |
| Part Height (mm) | 100,00mm |
| Part Depth (mm) | 30,00mm |
| Weight (g) | 0,058 Kg |
| description | Indicator lights, 22 mm, round, metal, shiny, white, lens, smooth, with holder, LED module with integrated LED 24 V AC/DC, screw terminal |
| country_of_origin | Czech Republic |
Technical Documentation & Downloads
Additional Datasheet
CAD Drawing
Technical CAD drawing file
Dimensional Drawing
Physical dimensions and measurements
Product Manual
Complete user documentation

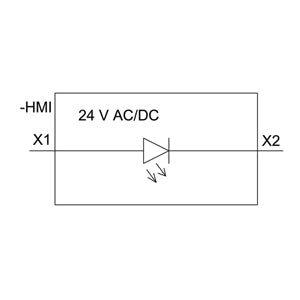

Circuit Diagram
