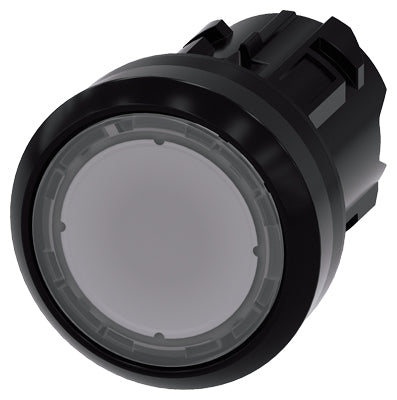

Siemens Illuminated pushbutton, round, clear, 22mm, IP66/67/69 Part number 3SU1001-0AA70-0AA0

Product Overview

The Siemens 3SU1001-0AA70-0AA0 is a SIRIUS ACT illuminated push-button head featuring a clear (white-light) flat actuator. Designed for 22 mm cut-out mounting, it operates in latching mode (push-to-lock, push or twist to release) and is built with a durable plastic housing. Its high protection ratings of IP66, IP67, and IP69K make it ideal for industrial control panels and demanding environmental conditions.

Key Features

• Illuminated push-button head from the Siemens SIRIUS ACT 3SU10 series
• Flat round actuator, clear (white-light) colour
• Latching operation – push to engage, push again or twist to release
• High protection rating: IP66, IP67, IP69K for harsh industrial conditions
• Rugged plastic housing for high mechanical durability
• Twist-proof mounting with integrated anti-rotation design
• Compact and lightweight construction for easy installation
• Suitable for panel cut-outs of 22 mm diameter

Technical Specifications

• Product Series: SIRIUS ACT – 3SU10
• Article Number: 3SU1001-0AA70-0AA0
• Actuator Type: Flat, round illuminated push-button
• Actuator Colour: Clear (white-light)
• Mounting Cut-out Diameter: 22.3 mm nominal
• Actuator Outer Diameter: Approx. 29.5 mm
• Operating Mode: Latching (push to lock, push or twist to unlock)
• Protection Class: IP66 / IP67 / IP69K
• Ambient Operating Temperature: –25 °C to +70 °C
• Mechanical Service Life: Approx. 3 million operations
• Material: Plastic front, industrial-grade design
• Weight: Approx. 0.015 kg

Compliance & Certifications

• Designed and manufactured under Siemens SIRIUS ACT quality standards
• Complies with IEC/EN industrial standards for control and signaling devices
• Meets global safety and performance requirements for industrial panels

Applications

Ideal for use in industrial control panels, machine operator stations, and automation systems where a durable illuminated push-button is required. Commonly used for machine start/stop control, status indication, and system command functions in environments with high levels of dust, moisture, or washdown requirements.
