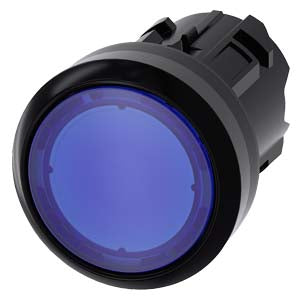

Siemens Illuminated pushbutton, flat momentary, blue, 22mm Part number 3SU1001-0AB50-0AA0

Product Overview

Siemens 3SU1001-0AB50-0AA0 is a SIRIUS ACT series illuminated pushbutton actuating and signaling element with a 22 mm round, flat plastic blue button. It features an integrated illumination source and operates as a momentary contact pushbutton for operator control and visual indication in control panels and industrial applications.

Key Features

• SIRIUS ACT illuminated pushbutton actuating and signaling element
• 22 mm round plastic actuator
• Flat pushbutton design with momentary contact operation
• Blue actuating element with integrated light source
• Front ring in black plastic
• High protection class for front panel use

Technical Specifications

• Article Number: 3SU1001-0AB50-0AA0
• Product Family: SIRIUS ACT 3SU10 illuminated pushbuttons
• Device Type: Illuminated pushbutton actuating/signaling element
• Actuator Shape: Round, flat button
• Actuator Colour: Blue
• Material of Actuator: Plastic
• Outer Diameter of Actuator: 29.5 mm
• Mounting/Installation Diameter: 22.3 mm
• Number of Command Points: 1
• Principle of Operation: Momentary contact type
• Integrated Light Source: Yes
• Front Ring Material: Plastic, black
• Protection Class (Front): IP66, IP67, IP69/IP69K
• Degree of Protection (Terminals): IP20
• NEMA Rating: 1, 2, 3, 3R, 4, 4X, 12, 13
• Mechanical Service Life (Typical): approx. 3 000 000 operating cycles
• Maximum Operating Frequency: approx. 3 600 operations/hour
• Shock Resistance: 15 g / 11 ms
• Vibration Resistance: 5 g, 10…500 Hz
• Operating Temperature Range: –25 °C to +70 °C
• Storage Temperature Range: –40 °C to +80 °C
• Weight (approx.): 0.024 kg

Compliance & Certifications

• Manufactured to Siemens industrial quality standards for signaling devices
• Designed and tested according to IEC/EN pushbutton and signaling element requirements

Applications

The Siemens 3SU1001-0AB50-0AA0 illuminated pushbutton actuating element is used for operator control and visual indication in industrial control panels, machinery interfaces and automation systems. It provides a reliable and protected input and signal point where status display and momentary actuation are required.
