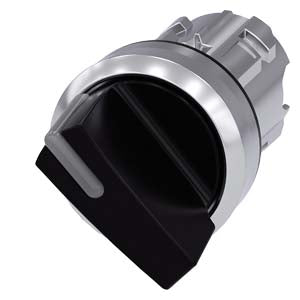

Siemens Illuminable selector switch, metal, 2 position, black

Product Overview

This SIRIUS ACT illuminable selector switch is designed for switching and control of electrical consumers in industrial applications. The 22mm round selector switch features a high-gloss metal construction with a black short handle design, providing reliable operation and excellent durability in demanding industrial environments. The switch offers illumination capability for enhanced visibility and status indication.

Key Features

• Size: 22mm diameter round design
• Construction: Metal body with high-gloss finish and black handle
• Switch Type: Short selector switch with illumination capability
• Switch Positions: 2 positions (O-I) with latching operation
• Actuating Angle: 90° rotation (10:30h/13:30h positions)
• Protection Rating: IP66/IP67/IP69K - providing protection against dust, water immersion, and high-pressure cleaning
• Operating Temperature: -25°C to +70°C

Technical Specifications

• Article Number: 3SU1052-2BF10-0AA0
• EAN: 4047621016597
• Net Weight: 0.106 lb (0.048 kg)

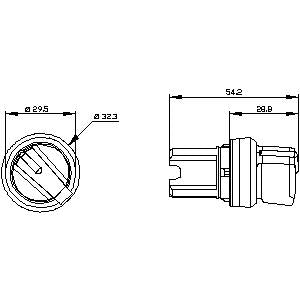

• Mounting Specifications:
  • Installation diameter: 22mm
  • Round shape design
  • Flush mounting capability
• Contact Type: Maintained/latched in all positions
• Handle Design: Short handle, black color
• Packaging: 1.181 x 2.756 x 1.181 inches
• Country of Origin: Czech Republic

Compliance & Certifications

• RoHS Compliance: Compliant since 12/19/2016
• Export Control: AL: N / ECCN: N
• WEEE Take-Back: Yes, compliant with 2012/19/EU directive
• NEMA Ratings: 1/2/3/3R/4/4X/12/13 compliant

Applications Part of the SIRIUS ACT portfolio, this illuminable selector switch is ideal for switching and control applications in industrial automation systems. The switch provides reliable ON-OFF control with visual status indication through its illumination capability. The innovative snap-on concept makes installation easy and can be done with one hand without special tools.

Product Series Information Under the brand name SIRIUS ACT, Siemens offers a comprehensive portfolio of pushbuttons and signaling devices with global product approvals in modern design lines featuring rugged genuine metal and high-grade plastic construction. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
