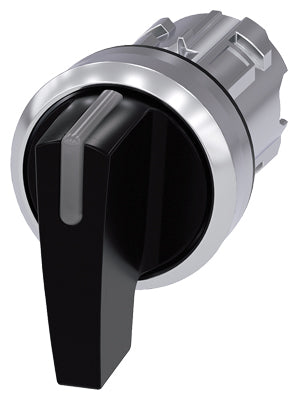

Siemens Illuminable selector switch, 3-position, 2 x 45°, 22mm Part number 3SU1052-2CP10-0AA0

Product Overview

The Siemens 3SU1052-2CP10-0AA0 is an illuminable selector switch from the SIRIUS ACT series, designed for 22 mm round panel mounting in industrial control applications. It features a metal front ring, black plastic long handle, and three switch positions (I > O < II) with a 2 × 45° actuation angle, providing both momentary and latching contacts for flexible operator control.

Key Features

• 22 mm round selector switch with built-in illumination
• Metal high-gloss front ring mounted on panel for rugged use
• Black long handle actuator with three positions: I > O < II
• Left position is momentary contact, right position is latching contact
• Actuating angle: 2 × 45° (left and right) for precise operator control
• High protection rating for industrial environments: IP66 / IP67 / IP69K

Technical Specifications

• Article Number: 3SU1052-2CP10-0AA0
• Series: Siemens SIRIUS ACT 3SU10
• Mounting Cut-out Diameter: 22.3 mm
• Operating Positions: 3 (I > O < II)
• Actuating Angle: 2 × 45°
• Material of Front Ring: Metal, high gloss (silver)
• Material of Actuator: Plastic, black
• Protection Rating (Front): IP66 / IP67 / IP69K
• Ambient Temperature (Operation): –25 °C to +70 °C
• Mechanical Service Life: approx. 1,000,000 operations

Compliance & Certifications

• Designed according to Siemens SIRIUS ACT control-station component standards
• Suitable for use in harsh industrial environments, including high-pressure cleaning, dust and oil exposure

Applications

Ideal for machine-control panels, operator stations, and automation systems where a compact, rugged selector switch with illumination and multiple positions is needed. Suitable for industrial equipment, process control, and installations requiring high ingress-protection ratings and intuitive operator switching.
