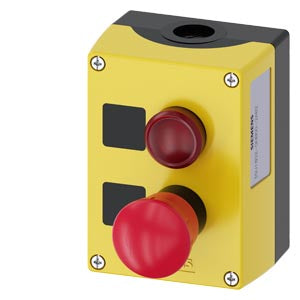

Enhance the functionality and aesthetics of your control panel with the Siemens 3SU1802-0NB00-2AB2 enclosure. This high-quality enclosure is designed for command devices, featuring a round shape and LED illumination for clear visual indicators. It operates at 24V and has a compact 22mm design, making it a versatile choice for various industrial applications.
Key Features:
Applications:
| IP Rating | IP66 |
| IP Rating Detailed | IP66 IP67, IP69(IP69K) degree of protection NEMA rating 1, 2, 3, 3R, 4, 4X, 12K, 13 shock resistance according to IEC 60068 |
| Compliance/Standards | EN 61373, IEC 60721, IEC 60068-2, IEC 81346-2 |
| Part Width (mm) | 128,00mm |
| Part Height (mm) | 132,00mm |
| Part Depth (mm) | 95,00mm |
| Weight (g) | 0,441 Kg |
| description | Enclosure for command devices, 22 mm, round, Enclosure material plastic, Enclosure top part yellow, 2 control points plastic, B=Indicator light red, LED 24 V, screw terminal, label without inscription, A=Emergency stop 40 mm rotate-to-unlatch, label without inscription, 1 NO, 1 NC, 1 NC, screw terminal, floor mounting, 1xM20 each on top and bottom, Labels enclosed |
| country_of_origin | Germany |
