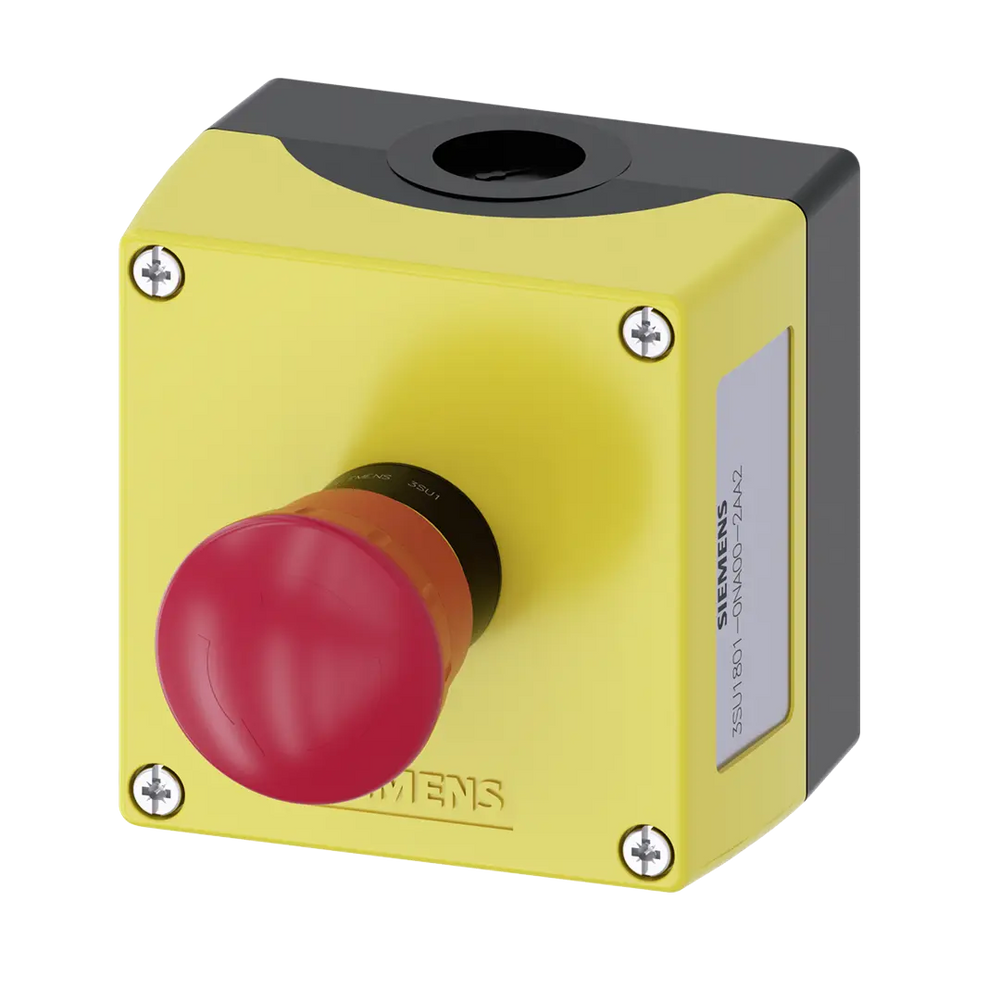

Siemens Enclosure, emergency stop p/button, red, 1NC Part number 3SU1801-0NA00-2AA2

EAN / Barcode 4011209968349
Product Type Control Panel
Product Class Control circuit devices combination in enclosure
Category Push Buttons and Switches
Sub-category Push Button Enclosure
ETIM Class Control circuit devices combination in enclosure
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD🌱 EcoTech Profile

Product Description

Siemens 3SU1801-0NA00-2AA2 Emergency stop, also known in the industry as E-stop is elegantly designed for ease of use as a rotate-to-unlatch mechanism palm switch. Along with red mushroom cap is available as a complete unit with contacts (1NC). The enclosure is yellow/black, and the casing is rated IP66/67/IP69K.

The E-stop switch has been tried, test and met all international standards worldwide. Making it a product that will perform soundly within the robust Automation industry.

Technical Specifications

Colour housing coverYellow
Degree of protection (IP)IP67/IP69K
Degree of protection (NEMA)1
Housing materialPlastic
Number of command positions1
Number of contacts as normally closed contact1
Number of mushroom-shaped push-buttons1
Rated control supply voltage AC 50 Hz5 V
Rated control supply voltage AC 60 Hz5 V
Rated control supply voltage DC5 V
Suitable for emergency stopYes
Part Width95 mm
Part Height99 mm
Part Depth134 mm
Weight319 g
Country of OriginGermany
View complete specifications on Siemens
