Product Overview

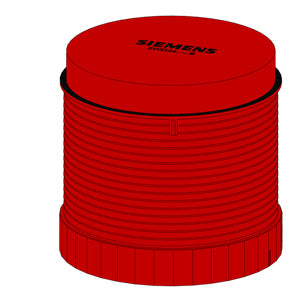

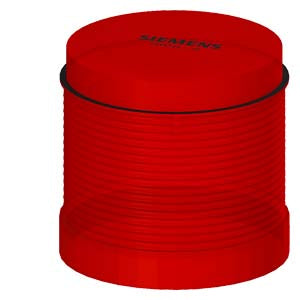

Continuous light element, with integrated LED, red, 24 V AC/DC, Diameter 70 mm. This high-performance signaling device is part of the SIRIUS 8WD4 modular signaling column series, designed for industrial warning systems, emergency indication, and critical process control applications requiring reliable, high-visibility red illumination.

Key Features

LED Technology:

• Integrated LED: High-brightness red LED for maximum visibility
• Red Color: Clear, bright red illumination for warning and alert indication
• Continuous Light: Steady illumination for constant alert status display
• Extended Service Life: Up to 100,000 hours LED operational life

Electrical Specifications:

• Dual Voltage: 24 V AC/DC operation for maximum flexibility
• Low Power Consumption: Energy-efficient LED design
• Wide Voltage Range: Reliable operation across voltage variations
• Universal Compatibility: Suitable for both AC and DC applications

Mechanical Design:

• 70 mm Diameter: Standard industrial signaling column dimension
• Bayonet Mounting: Secure, quick-connect bayonet mechanism
• Modular Construction: Compatible with SIRIUS 8WD4 signaling systems
• Robust Housing: Industrial-grade construction for harsh environments

Technical Specifications

Physical Characteristics:

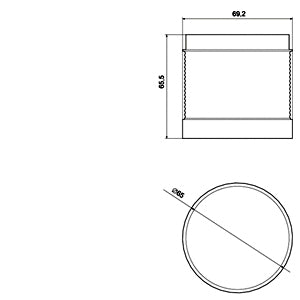

• Diameter: 70 mm
• Height: 65.5 mm
• Net Weight: 0.073 kg
• Packaging Dimensions: 72.00 x 75.00 x 72.00 mm
• Housing Material: High-grade thermoplastic with red lens

Electrical Properties:

• Operating Voltage: 24 V AC/DC
• Light Source: Integrated LED
• Color: Red
• Light Type: Continuous (steady)
• Current Consumption: Low power LED design

Environmental Specifications:

• Protection Rating: IP65 (dust-tight and protected against water jets)
• Operating Temperature: -20°C to +50°C
• Shock Resistance: High resistance to mechanical impact
• Vibration Resistance: Suitable for industrial environments with vibration
• Mounting: Horizontal/Vertical mount capability

Standards and Compliance:

• RoHS Compliance: Yes, since 01.07.2006
• WEEE Take-Back Obligation: Yes
• Export Control: AL: N / ECCN: N
• Country of Origin: Germany

Product Information:

• EAN: 4011209497214
• Packaging Quantity: 1 piece
• Quantity Unit: 1 Piece

Applications

The SIRIUS 8WD4 Red Continuous Light Element is ideal for:

• Emergency Systems: Fire alarms, emergency stops, and safety alerts
• Critical Process Warnings: High-priority alarm conditions
• Machine Safety: Equipment malfunction and danger warnings
• Production Line Alerts: Quality failures and critical issues
• Security Systems: Unauthorized access and breach warnings
• Industrial Safety: Hazardous condition indication
• Laboratory and Medical: Critical alert systems

Safety and Warning Applications

Critical Signaling:

• High Visibility: Red color provides maximum attention-grabbing capability
• Emergency Alerts: Ideal for fire, safety, and emergency systems
• Danger Indication: Clear warning for hazardous conditions
• Process Alarms: Critical process parameter violations

Industrial Standards:

• Safety Compliance: Meets industrial safety signaling standards
• Color Coding: Red universally recognized for danger/stop/alarm
• Reliability: Consistent performance in safety-critical applications

Installation and Mounting

Easy Installation:

• Bayonet Mounting: Quick, secure connection mechanism
• Tool-Free Assembly: No special tools required for installation
• Modular Design: Stackable with other SIRIUS 8WD4 elements
• Quick Replacement: Easy maintenance and element replacement

Wiring Features:

• Standard Connections: Industry-standard wiring terminals
• Dual Voltage Support: Simplified installation with AC/DC compatibility
• Secure Connections: Reliable electrical connections for industrial use

System Integration

Compatibility:

• SIRIUS 8WD4 Series: Full compatibility with all 8WD4 signaling components
• Modular Stacking: Create custom signaling columns
• Standard Accessories: Mounting pipes, adapters, and connection elements available
• Control Integration: Compatible with PLC and automation systems

Available Accessories:

• Mounting Pipes: Various lengths for custom column heights
• Adapters: Connection elements for different configurations
• Bases and Feet: Mounting solutions for various applications

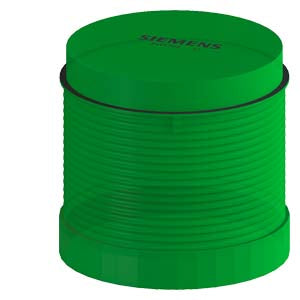

• Multi-Color Systems: Combine with green, amber, blue, and white variants

Advantages

Performance Benefits:

• High Visibility: Optimized light distribution for maximum visibility
• Energy Efficiency: LED technology reduces power consumption
• Maintenance-Free: Long LED life reduces replacement requirements
• Reliable Operation: Consistent performance in safety-critical applications

Safety Features:

• Instant Response: Immediate illumination for critical alerts
• Weather Resistant: IP65 rating for outdoor and harsh environments
• Shock Resistant: Withstands industrial vibration and impact
• Temperature Stable: Operates reliably in extreme temperatures

Cost Effectiveness:

• Low Operating Costs: Minimal power consumption
• Extended Service Life: Reduced maintenance and replacement costs
• Modular Design: Flexible configuration options
• Easy Installation: Reduced installation time and costs

REACH Compliance Notice

This product contains Lead in concentrations higher than 0.1% weight by weight (w/w) as per REACH Article 33 duty to inform. Based on available information, this substance does not pose risk when the product is used as intended, including disposal. Please refer to product documentation for additional safety information.
