Product Overview

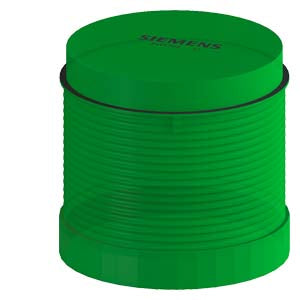

Continuous light element, with integrated LED, green, 24 V AC/DC, Diameter 70 mm. This high-performance signaling device is part of the SIRIUS 8WD4 modular signaling column series, designed for industrial visual warning and process control applications requiring reliable, energy-efficient LED illumination.

Key Features

LED Technology:

• Integrated LED: High-brightness LED for superior visibility
• Green Color: Clear, bright green illumination for status indication
• Continuous Light: Steady illumination for constant status display
• Long Service Life: LED technology provides extended operational life

Electrical Specifications:

• Dual Voltage: 24 V AC/DC operation for maximum flexibility
• Low Power Consumption: Energy-efficient LED design
• Wide Voltage Range: Reliable operation across voltage variations
• Universal Compatibility: Suitable for both AC and DC applications

Mechanical Design:

• 70 mm Diameter: Standard industrial signaling column dimension
• Bayonet Mounting: Secure, quick-connect bayonet mechanism
• Modular Construction: Compatible with SIRIUS 8WD4 signaling systems
• Robust Housing: Industrial-grade construction for harsh environments

Technical Specifications

Physical Characteristics:

• Diameter: 70 mm
• Height: 65.5 mm
• Net Weight: 0.073 kg
• Packaging Dimensions: 76.00 x 74.00 x 69.00 mm
• Material: High-grade polymer housing

Electrical Properties:

• Operating Voltage: 24 V AC/DC
• Light Source: Integrated LED
• Color: Green
• Light Type: Continuous (steady)
• Current Consumption: Low power LED design

Environmental Specifications:

• Protection Rating: IP65 (dust-tight and protected against water jets)
• Operating Temperature: Industrial temperature range
• Shock Resistance: High resistance to mechanical impact
• Vibration Resistance: Suitable for industrial environments with vibration

Standards and Compliance:

• RoHS Compliance: Yes, since 01.07.2006
• WEEE Take-Back Obligation: Yes
• Export Control: AL: N / ECCN: N
• Country of Origin: Germany

Product Information:

• EAN: 4011209497221
• Packaging Quantity: 1 piece
• Quantity Unit: 1 Piece

Applications

The SIRIUS 8WD4 Continuous Light Element is ideal for:

• Machine Status Indication: Equipment operational status display
• Process Control: Visual indication of process states
• Safety Systems: Emergency and safety status signaling
• Production Lines: Work station and line status indication
• Automation Systems: PLC-controlled status displays
• Quality Control: Pass/fail indication systems
• Warehouse Operations: Equipment and zone status indication

Installation and Mounting

Easy Installation:

• Bayonet Mounting: Quick, secure connection mechanism
• Tool-Free Assembly: No special tools required for installation
• Modular Design: Stackable with other SIRIUS 8WD4 elements
• Quick Replacement: Easy maintenance and element replacement

Wiring Features:

• Standard Connections: Industry-standard wiring terminals
• Dual Voltage Support: Simplified installation with AC/DC compatibility
• Secure Connections: Reliable electrical connections for industrial use

System Integration

Compatibility:

• SIRIUS 8WD4 Series: Full compatibility with all 8WD4 signaling components
• Modular Stacking: Create custom signaling columns
• Standard Accessories: Mounting pipes, adapters, and connection elements available
• Control Integration: Compatible with PLC and automation systems

Available Accessories:

• Mounting Pipes: Various lengths for custom column heights
• Adapters: Connection elements for different configurations
• Bases and Feet: Mounting solutions for various applications

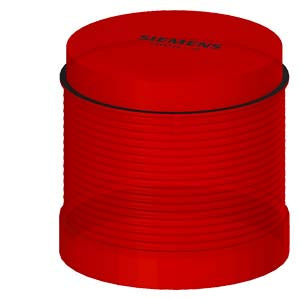

• Other Colors: Red, amber, blue, and white variants available

Advantages

Performance Benefits:

• High Visibility: Optimized light distribution for maximum visibility
• Energy Efficiency: LED technology reduces power consumption
• Maintenance-Free: Long LED life reduces replacement requirements
• Reliable Operation: Consistent performance in industrial environments

Cost Effectiveness:

• Low Operating Costs: Minimal power consumption
• Extended Service Life: Reduced maintenance and replacement costs
• Modular Design: Flexible configuration options
• Easy Installation: Reduced installation time and costs

REACH Compliance Notice

This product contains Lead in concentrations higher than 0.1% weight by weight (w/w) as per REACH Article 33 duty to inform. Based on available information, this substance does not pose risk when the product is used as intended, including disposal. Please refer to product documentation for additional safety information.
