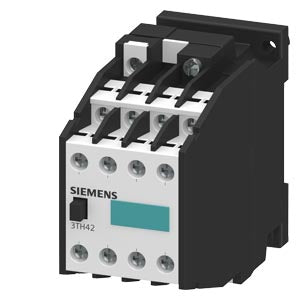

Siemens Contactor relay, screw terminal, 6NO + 2NC, 230/220VAC Part number 3TH4262-0AP0

Name: Siemens Contactor relay, screw terminal, 6NO + 2NC, 230/220VAC
Brand: Siemens
SKU: 3TH4262-0AP0

EAN / Barcode 4011209048454

Product Type Control Panel

Product Class Contactor relay

ETIM Class Contactor relay

In Stock

View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

Product Overview

Contactor relay designed to EN 50011 standard with 62E designation, featuring 6 NO + 2 NC auxiliary contacts and screw terminal connections. Operates with AC control voltage of 230/220 V AC at 50 Hz and 276/264 V at 60 Hz, engineered for switching control signals in control circuits.

Key Features

The SIRIUS 3TH4 contactor relays are designed for auxiliary control applications requiring reliable switching of control signals. These 8-pole devices feature standard-compliant terminal designations and reliable connection technology. The multiplication of outputs enables simultaneous switching of up to 10 auxiliary circuits, making them ideal for complex control applications requiring multiple auxiliary contacts.

Technical Specifications

Contact Configuration: 6 NO + 2 NC auxiliary contacts
Control Supply Voltage: 230/220 V AC 50 Hz, 276/264 V 60 Hz
Contact Type: 62E designation per EN 50011
Terminal Type: Screw terminals
Rated Operational Current (Ie): 10 A at 400 V
Number of Poles: 8-pole configuration
Protection Class: IP20
Net Weight: 0.414 kg
Package Dimensions: 161.00 x 235.00 x 112.00 mm

Design Features

The contacts are designed with positively driven operation suitable for safety applications as well as SUVA versions. The devices are climate-resistant and offer high contact reliability, making them suitable for worldwide use thanks to corresponding approvals including IEC and UL/CSA standards. The ambient operating temperature range is -25°C to +55°C.

Applications

These auxiliary contactors are specifically designed for switching control signals in control circuits. They are ideal for:

Industrial control systems requiring multiple auxiliary circuits
Safety control systems with positively driven contacts
Automation applications requiring reliable auxiliary switching
Control panels needing simultaneous switching of multiple circuits
Railway applications and industrial control circuits

Standards and Compliance

Standard: DIN EN 50011
EAN: 4011209048454
UPC: 754554284484
Country of Origin: China
WEEE Take-Back Obligation: Yes
Export Control Regulations: AL : N / ECCN : N

Physical Characteristics

Packaging Quantity: 1 piece
Quantity Unit: 1 piece
Package Size Unit: MM
Net Weight: 0.414 kg
Protection Class: IP20
Operating Temperature Range: -25°C to +55°C

Available Accessories

Compatible accessories include surge suppressors, time-delay blocks, and coupling links to enhance functionality and protection in various applications.

Download existing graphical data for this product:

Technical Specifications

Compliance/Standards	IEC 61508, IEC 60529, EN 50022, IEC 60947-5, EN 50011, IEC 81346-2
Connection type auxiliary circuit	Screw connection
country_of_origin	China

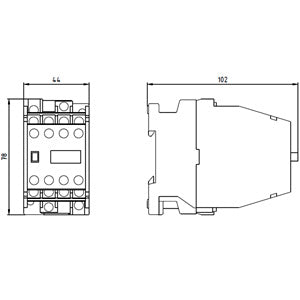

Depth	102 mm
description	Contactor relay, 62E, DIN EN 50011, 6 NO + 2 NC, screw terminal AC operation 230/220 V AC 50 Hz, 276/264V 60Hz
Height	78 mm
IP Rating	IP00
IP Rating Detailed	IP00 IP20 with screws tightened, even for contacts not in use Approvals Certificates General Product Approval Functional Saftey Type Examination Cer
Mounting method	Screw
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	6
Part Depth (mm)	112,00mm
Part Height (mm)	235,00mm
Part Width (mm)	161,00mm
Rated control supply voltage AC 50 Hz	230 V
Rated control supply voltage AC 60 Hz	277 V
Rated operation current Ie, 400 V	6 A
Type of Voltage	AC
Voltage type for actuating	AC
Weight (g)	0,414 Kg
Width	45 mm
