Siemens Connection plug for Profibus, no PG socket

Product Overview

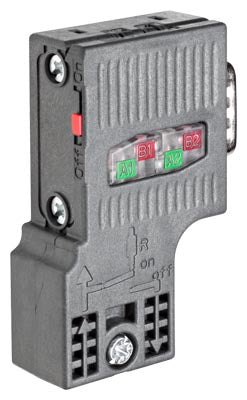

SIMATIC DP, Connection plug for PROFIBUS up to 12 Mbit/s 90° cable outlet, Insulation displacement method FastConnect, without PG socket 15.8x 59x 35.6 mm (BxHxD). This industrial communication connector provides reliable PROFIBUS connectivity for SIMATIC DP systems with space-saving 90-degree cable routing in a streamlined design without programming port for dedicated communication applications.

Key Features

Connector Design:

• PROFIBUS DP connection plug with 90° cable outlet
• FastConnect insulation displacement technology
• Without PG (Programming) socket for streamlined design
• Compact industrial design for space-efficient installation
• Robust construction for harsh industrial environments

Communication Specifications:

• Data transfer rate up to 12 Mbit/s
• RS485 communication interface
• PROFIBUS DP protocol support
• 90° cable outlet for space-saving installation
• FastConnect connection system for quick installation

Performance Specifications:

• Data Rate: Up to 12 Mbit/s PROFIBUS communication
• Cable Outlet: 90° angle for space-saving installation
• Connection Method: Insulation displacement FastConnect
• PG Socket: Not included (streamlined design)
• Dimensions: 15.8 x 59 x 35.6 mm (W x H x D)

Technical Specifications

Physical Characteristics:

• Net Weight: 0.040 kg
• Dimensions: 15.8 x 59 x 35.6 mm (W x H x D)
• Packaging Dimensions: 6.80 x 7.70 x 3.20 cm
• Cable Outlet: 90° angled for space optimization
• Material: Industrial-grade plastic housing

Electrical Properties:

• Communication Protocol: PROFIBUS DP
• Interface: RS485
• Data Rate: Up to 12 Mbit/s
• Connection Technology: FastConnect insulation displacement
• Programming Port: Not included

Standards and Compliance:

• RoHS Compliance: Yes, since 15.09.2011
• WEEE Take-Back Obligation: Yes, covered under WEEE (2012/19/EU)
• Export Control: AL: N / ECCN: N
• Country of Origin: Germany
• Protection Rating: IP20 when mounted

Product Information:

• EAN: 4025515077299
• UPC: 662643406160
• Packaging: 1 piece per package
• Product Class: Standard product (returnable)

Applications

The PROFIBUS connector is designed for industrial automation networks requiring reliable communication in SIMATIC DP systems where programming access is not required and space constraints demand 90° cable routing. Ideal for dedicated communication applications in distributed I/O systems, process automation, factory automation, drive systems, and field device connections in confined spaces without the need for field programming access.

Operation

The connector provides PROFIBUS DP communication using FastConnect insulation displacement technology, eliminating the need for cable stripping and reducing installation time. The 90° cable outlet allows optimal cable routing in confined spaces while maintaining signal integrity. The streamlined design without PG socket makes it ideal for applications where programming access is handled through other means or where a more compact connector is preferred for space-constrained installations.

Compatibility

System Integration:

• SIMATIC DP: Full compatibility with SIMATIC DP networks
• PROFIBUS: Standard PROFIBUS DP protocol support
• Field Devices: Connection of distributed I/O and field devices
• Network Topology: Daisy-chain and star configurations

Installation Benefits:

• FastConnect Technology: Quick and reliable cable connection
• 90° Cable Outlet: Space-saving design for confined installations
• Compact Design: Streamlined profile without PG socket
• Cost-Effective: Simplified design for dedicated communication applications

REACH Compliance

Information obligation imposed by Article 33, REACH Regulation: This product includes articles containing the following substances from the candidate list in concentrations higher than 0.1% weight by weight (w/w):

• Lead monoxide (lead oxide): Present in electronic components
• 2-benzyl-2-dimethylamino-4'-morpholinobutyrophenone: Present in plastic components

Based on current information, these substances do not pose risk when used as intended, including proper disposal.
