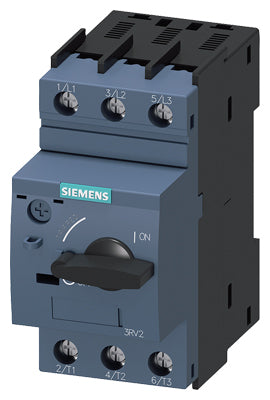

Siemens Circuit breaker for transformer protection, size S00, 286A Part number 3RV2411-4AA10

Product Overview

The Siemens 3RV2411-4AA10 is a SIRIUS 3RV2-series circuit breaker (size S00) designed for transformer protection, system protection, and short-circuit / overload protection of motor-feeder or general low-voltage circuits. It is a compact, screw-terminal protected breaker with adjustable thermal-magnetic release and built-in breaking capacity for industrial and distribution applications.

Key Features

• Circuit breaker, size S00 (compact size for space-efficient panel installation)
• Adjustable A-release (thermal/magnetic trip) setting: 10 … 16 A
• Suitable for transformer protection, system protection, short-circuit protection or motor feeder protection
• Screw-terminal connections for reliable and vibration-resistant wiring
• Standard breaking capacity — capable of high short-circuit currents
• Compact width — easy integration into distribution boards or control panels
• Versatile use: transformer circuits, feeder circuits, starter combinations, or general power protection
• Mountable on standard 35 mm DIN rail (or screw mounting) — flexible installation

Technical Specifications

• Article Number: 3RV2411-4AA10
• Product Family: SIRIUS 3RV2 circuit breakers / motor-starter protectors
• Size: S00
• Setting / Release Range (A-release): 10 … 16 A
• Rated Insulation Voltage (Ui): 690 V AC (pollution degree 3)
• Short-Circuit Breaking Capacity (Icu): up to 100 kA at 240 V AC; 55 kA at 400 V AC; 10 kA at 500 V AC; 4 kA at 690 V AC
• Service Short-Circuit Capacity (Ics): up to 100 kA at 240 V AC; 30 kA at 400 V AC; 5 kA at 500 V AC; 2 kA at 690 V AC
• Connection Type: Screw-terminals (line and load terminals)
• Mounting: Snap-on 35 mm DIN-rail or screw mounting, any mounting position
• Typical Power Loss at Rated Current: ~7 W
• Ambient Operating Temperature Range: −50 °C … +70 °C (depending on application and environment) for specified derating
• Application Types: Transformer protection, system/sub-distribution protection, starter combination protection, short-circuit and overload protection

Compliance & Certifications

• Designed according to IEC / EN standards for low-voltage circuit breakers / motor-feeder protection devices
• Suitable for standard industrial, commercial or distribution-board applications
• Capable of high breaking capacity and safe interruption under fault conditions — appropriate for transformer or feeder protection

Applications

The 3RV2411-4AA10 is ideal for use in power distribution boards, motor-feeder circuits, transformer circuits, sub-distribution panels, and industrial control cabinets requiring reliable short-circuit, overload, and transformer protection. Typical applications include protection of small transformers, feeder lines, motor starter combinations, and general branch-line protection in industrial or commercial electrical installations. Its compact S00 size and DIN-rail mounting make it especially useful where space is limited or modular installation is preferred.
