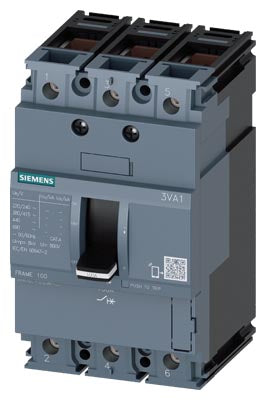

Siemens Circuit breaker, 3-pole, 25kA, 415V, 80A Part number 3VA1080-3ED36-0AA0

Product Overview

The Siemens SENTRON 3VA1080-3ED36-0AA0 is a 3-pole molded-case circuit breaker from the 3VA1 series (IEC Frame 100) designed for line protection in industrial electrical systems. It features a rated operational current of 80 A, short-circuit protection permanently set at 10 × In, and a breaking capacity of up to 25 kA at 415 V (class N, Icu). This robust breaker is configured for overload and short-circuit protection for larger feeder circuits and industrial applications.

Key Features

• Rated Current: 80 A (AC-3, 400/415 V)
• Frame Size: IEC Frame 100 (3VA1 series)
• Breaking Capacity (Icu): 25 kA at 415 V AC (16 kA at 440 V, 5 kA at 500/690 V)
• Short-Circuit Protection: Permanently set to 10 × In
• Overload Protection: 80 A fixed (Ir = In)
• Number of Poles: 3
• Terminal Connection: Box terminals (front connection)
• Ambient Operating Temperature: –25 °C to +70 °C

Technical Specifications

• Product Series: SENTRON 3VA1 Molded-Case Circuit Breakers
• Article Number: 3VA1080-3ED36-0AA0
• Rated Insulation Voltage (Ui): 800 V AC
• Rated Operational Voltage (Ue): Up to 690 V AC; 500 V DC
• Power Loss (max): 19.2 W
• Mechanical Service Life: Approx. 20,000 operations
• Electrical Endurance (AC-1, 380/415 V): 9,000 operations
• Connectable Conductor Cross-Section: 1.5 … 70 mm²
• Dimensions (approx.): Width 76.2 mm, Depth 70 mm, Height 130 mm
• Net Weight: ≈ 0.98 kg
• Protection Class Front: IP40

Compliance & Certifications

• Complies with IEC/EN 60947-2 and relevant low-voltage switchgear standards
• Breaking capacity class N per IEC 60947-2
• RoHS compliant (since April 1, 2014)
• WEEE directive applicable for take-back

Applications

Ideal for industrial feed-circuit protection, motor feeder protection, and general three-phase switching in automation, machine building, and distribution applications. Commonly used in switchgears, control panels, and systems where robust overcurrent protection is required for larger circuits (up to 80 A) with high short-circuit breaking capacity.
