Siemens Circuit breaker, 1-pole, 10kA, 2A
View on Siemens 📄 Datasheet
Siemens

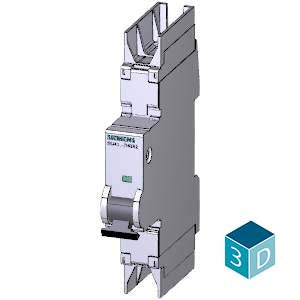

Siemens Circuit breaker, 1-pole, 10kA, 2A Part number 5SJ4102-7HG42

EAN / Barcode 4001869383538
Product Type Control Panel
Product Class Miniature circuit breaker (MCB)
ETIM Class Miniature circuit breaker (MCB)
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

Product Overview

SKU 5SJ4102-7HG42 - Circuit breaker 10kA, 1-pole, C, 2A according to UL 489-277V. This Siemens miniature circuit breaker is a thermal/magnetic overcurrent protection device intended for general industrial use such as Branch Circuit and Feeder Protection.

Key Features & Specifications

  • Electrical Ratings: Rated current 2A, 277 VAC, 60 VDC maximum
  • Breaking Capacity: 10kA interrupt capacity at 277V AC, 14kA interrupt capacity
  • Configuration: 1-pole, Release characteristic C
  • Trip Curve: C-trip designed for general device protection in control circuits
  • Mounting: DIN Rail Mount
  • Connection: Screw connection, 14 to 4 AWG Wire
  • Protection Rating: IP20 Enclosure
  • Operating Temperature: -25 to 55°C

Physical Specifications

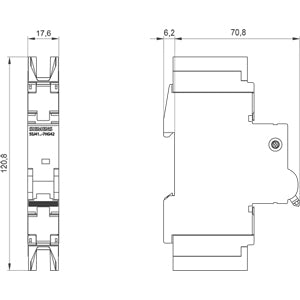

  • Dimensions: 121 mm H x 18 mm W x 70 mm D
  • Net Weight: 0.176 kg
  • Packaging Dimension: 22.00 x 125.00 x 84.00 mm
  • Modular Width: 1 modular spacing

Certifications & Compliance

UL 489 and CSA 22.2 No. 5-02 standards compliant. CE marked according to IEC/EN 60 898 and IEC/EN 60 947-2 making them suitable for use in international applications. Used in single pole, branch circuit protection applications up to 277 VAC maximum and 60 VDC maximum.

Trip Characteristics

C-trip is designed for general device protection in control circuits and all other miniature circuit breaker systems, magnetic trip point is 5 to 10 times the MCB rating.

Additional Information

  • Country of Origin: Germany
  • EAN: 4001869383538
  • Article Number: 5SJ4102-7HG42
  • Packaging Quantity: 1 Piece
  • RoHS Compliance: Since: 01.07.2008
  • WEEE Take-Back Obligation: Yes

Download existing graphical data for this product:

Product Datasheet (PDF)

Complete Product Information

Technical Specifications

Additional equipment possibleYes
Ambient temperature during operating-25 °C
Built-in depth70 mm
Compliance/StandardsEN 60947-2, IEC 60947-2, EN 60898, IEC 60068-2, UL 1077
country_of_originGermany
Degree of protection (IP)IP20
descriptionCircuit breaker 10kA, 1-pole, C, 2A according to UL 489-277V
Frequency50 Hz
IP RatingIP20
IP Rating DetailedIP20 with connected conductors, IP 40 in the handle range Breaking Capacity switching capacity current 5SJ41027HG42 Page 1
Number of poles (total)1
Number of protected poles1
Over voltage category3
Part Depth (mm)84,00mm
Part Height (mm)125,00mm
Part Width (mm)22,00mm
Pollution degree3
Power loss1.8 W
Rated current2 A
Rated insulation voltage Ui440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15 kA
Rated voltage400 V
Release characteristicC
Voltage typeAC/DC
Weight (g)0,176 Kg
Width in number of modular spacings1
View complete specifications on Siemens
