Description

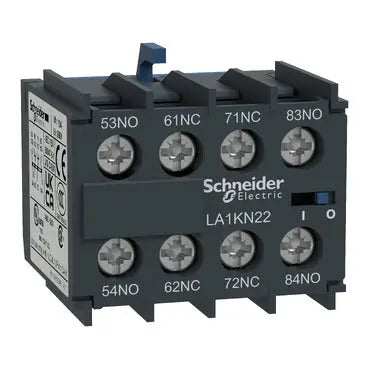

xThis auxiliary contact block offers 2 NO and 2 NC contacts for instantaneous operation. It is compatible with TeSys K systems, front-mounted, and provides reliable performance in industrial automation setups.
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | CCC / CE / CSA / CSA C22.2 No 60947-5-1 / EN/IEC 60947-5-1 / GB/T 14048.5 / JIS C8201-5-1 / UL / UL 60335-2-40:Annex JJ / UL 60947-5-1 / UKCA |
| Temperature: Operating | -25 °C to 50 °C |
| Part Depth (mm) | 35mm |
| Part Width (mm) | 38mm |
| Part Height (mm) | 30mm |
| Weight (g) | 45g |
| Packaging size / unit | 1 pc(s) / 10 pc(s) / 100 pc(s) |
| Tightening Torque | 1.3 Nm |
| Connection Type | Screw clamp terminals 1 cable(s) 0.34 - 1.5 mm²flexible with cable end / Screw clamp terminals 1 cable(s) 0.75 - 4 mm²flexible without cable end / Screw clamp terminals 1 cable(s) 1.5 - 4 mm²rigid / Screw clamp terminals 2 cable(s) 0.34 - 1.5 mm²flexible with cable end / Screw clamp terminals 2 cable(s) 0.75 - 4 mm²flexible without cable end / Screw clamp terminals 2 cable(s) 1.5 - 4 mm²rigid |
| Rated Operating Voltage | 690 VAC 25 - 400 Hz |
| Warranty | 18 Months |
