Schneider Auxiliary contact block, 1NO + 1NC Schneider Electric
Schneider Auxiliary contact block, 1NO + 1NC Schneider Electric

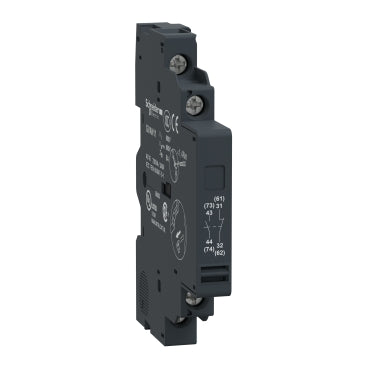

Schneider Auxiliary contact block, 1NO + 1NC Part number GVAN11

This auxiliary contact block is designed for the left-side mounting on TeSys GV2 and GV3 motor circuit breakers. It offers 1 NO + 1 NC contacts and is capable of handling up to 6 A of thermal current, ensuring reliable control in motor protection applications.
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
This auxiliary contact block is designed for the left-side mounting on TeSys GV2 and GV3 motor circuit breakers. It offers 1 NO + 1 NC contacts and is capable of handling up to 6 A of thermal current, ensuring reliable control in motor protection applications.
Specifications
Specifications
x
Country of OriginGermany
Compliance/CertificationsUKCA
Part Depth (mm)66mm
Part Width (mm)9.3mm
Part Height (mm)89mm
Weight (g)50g
Tightening Torque1.4 Nm
Connection Style1 NO + 1 NC
Rated Operating Voltage48 - 690 VAC / 24 - 240 VDC
Warranty18 Months
ColourDark Grey
Documents
Documents
x
Download Datasheet
