Description

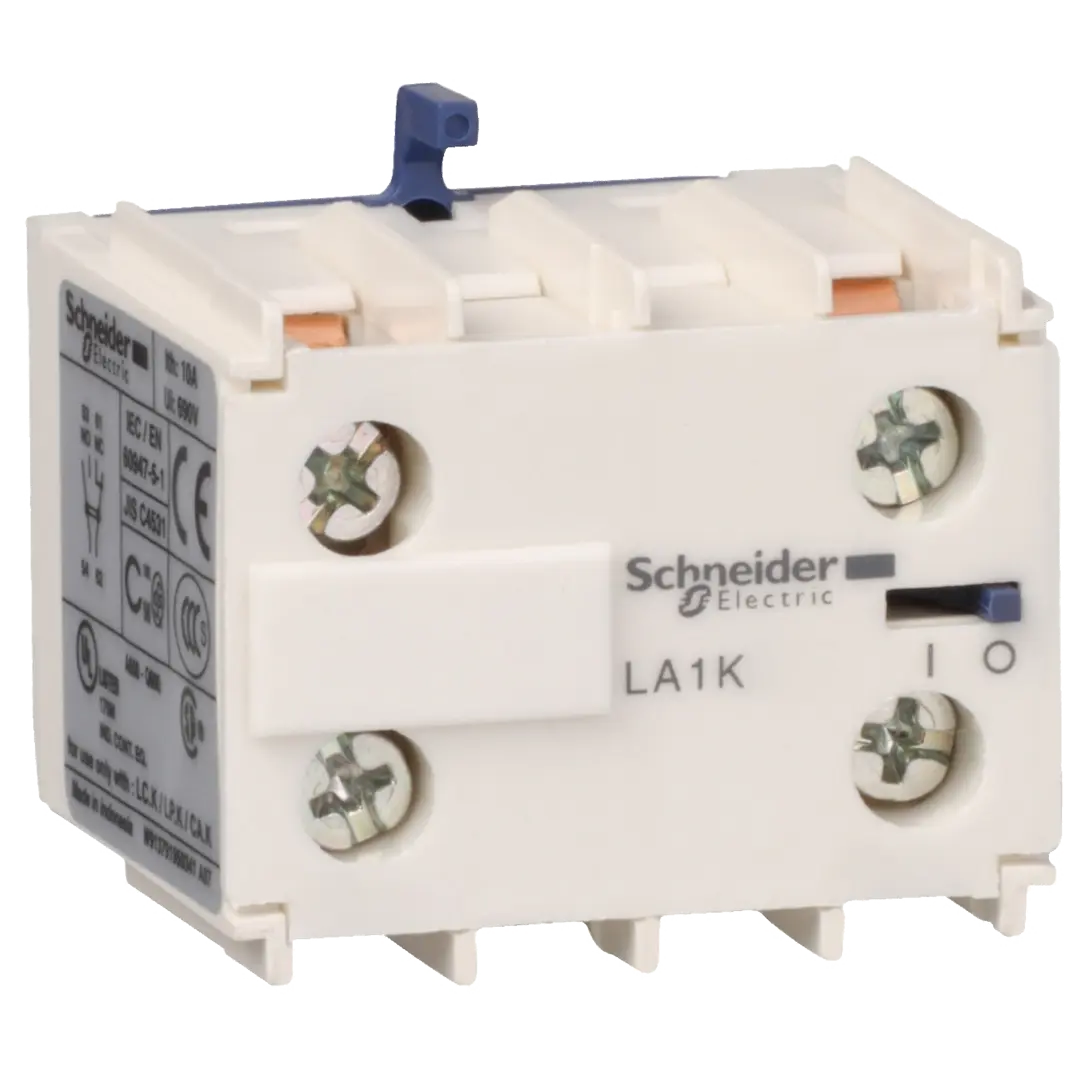

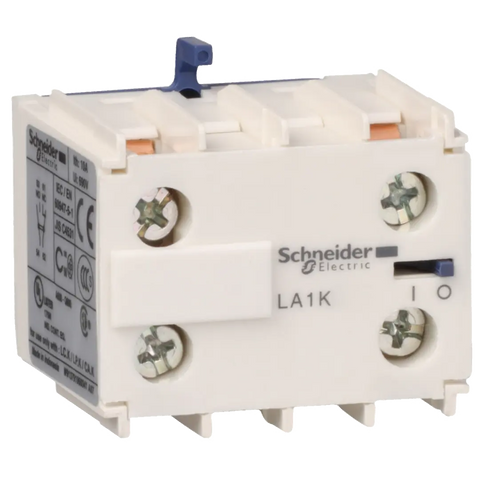

xTeSys K is a compact contactor range with a wide variety of coil voltage and terminal connection options. The offer features specific versions for railway (TeSys S207) and electro domestic (TeSys S335) applications. Auxiliary contact block includes Front mounting, 2 NO pole contact composition, instantaneous contacts operation. It has a rated operational current of 6 A at 120 V AC-15 and a rated operational voltage 690 V AC 25…400 Hz.
Specifications
x| IP Rating / Detailed | IP20 conforming to IEC 60529 |
| Compliance/Certifications | EN/IEC 60947-5-1,UL 60947-5-1,CSA C22.2 No 60947-5-1,GB/T 14048.5,JIS C8201-5-1,UL 60335-2-40:Annex JJ |
| Temperature: Operating | -25…50 °C |
| Part Depth (mm) | 35mm |
| Part Width (mm) | 38mm |
| Part Height (mm) | 30mm |
| Tightening Torque (N.m) | 1.3 Nm |
| Connection Type | Screw clamp terminals 1 cable(s) 0.34…1.5 mm²flexible with cable end,Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end,Screw clamp terminals 1 cable(s) 1.5…4 mm²rigid,Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end,Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end,Screw clamp terminals 2 cable(s) 1.5…4 mm²rigid |
| Rated Operating Voltage | 690 V AC 25...400 Hz |
