Description

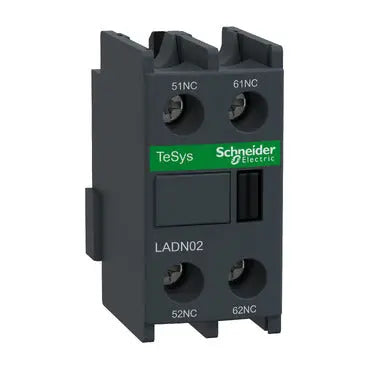

xThis auxiliary contact block features 2 NC contacts for instantaneous operation. It is front-mounted and compatible with TeSys D and Deca ranges, making it ideal for motor control and industrial automation applications.
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | CB Scheme / CCC / CSA / CSA C22.2 No 60947-5-1 / EAC / EN 50012 / EN/IEC 60947-5-1 / GB/T 14048.5 / IEC 60335-1:Clause 30.2 / IEC 60335-2-40:Annex JJ / UL / UL 60335-2-40:Annex JJ / UL 60947-5-1 / UKCA |
| Temperature: Operating | -5 °C to 60 °C |
| Part Depth (mm) | 42mm |
| Part Width (mm) | 26mm |
| Part Height (mm) | 48mm |
| Packaging size / unit | 1 pc(s) / 320 pc(s) |
| Tightening Torque | 1.7 Nm |
| Connection Type | Screw clamp terminals 1 cable(s) 1 - 4 mm²flexible with cable end / Screw clamp terminals 1 cable(s) 1 - 4 mm²flexible without cable end / Screw clamp terminals 2 cable(s) 1 - 2.5 mm²flexible with cable end / Screw clamp terminals 2 cable(s) 1 - 4 mm²flexible without cable end / Screw clamp terminals 1 cable(s) 1 - 4 mm²rigid without cable end / Screw clamp terminals 2 cable(s) 1 - 4 mm²rigid without cable end |
| Rated Operating Voltage | 690 VAC |
| Current Rating / Rated Current | 0.1 - 6 A |
| Operating Period | 30 Mcycles (mechanical) |
| Colour | Dark grey |
