Description

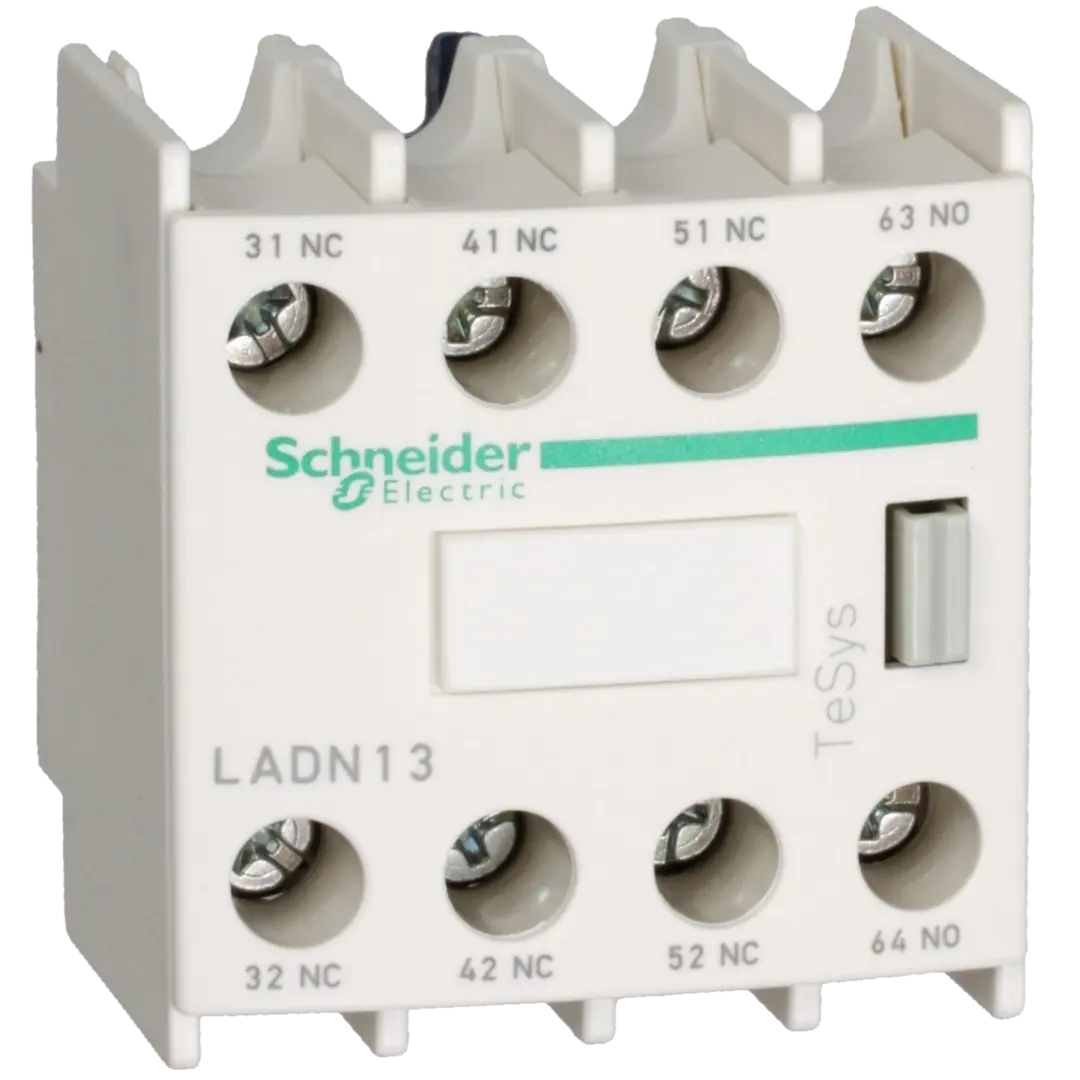

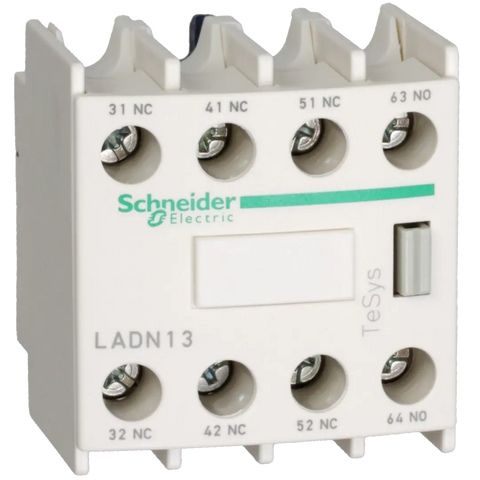

xThe product is a CONTACTS BLOCK included in passive products - non-continuous operation category. The main purpose of the product is to add instantaneous auxiliary contact blocks. The product is a CONTACTS BLOCK included in passive products - non-continuous operation category. The main purpose of the product is to add instantaneous auxiliary contact blocks. Functional unit is to to add instantaneous auxiliary contact blocks in front face on TeSys D and F contactors as NO and/or NC contacts for 20 years.
Specifications
x| IP Rating / Detailed | IP20 conforming to IEC 60529 |
| Compliance/Certifications | EN/IEC 60947-5-1,GB/T 14048.5,EN 50012,UL 60947-5-1,CSA C22.2 No 60947-5-1,IEC 60335-1:Clause 30.2,IEC 60335-2-40:Annex JJ,UL 60335-2-40:Annex JJ |
| Temperature: Operating | -5…60 °C |
| Part Depth (mm) | 42mm |
| Part Width (mm) | 44mm |
| Part Height (mm) | 48mm |
| Tightening Torque (N.m) | 1.7 Nm |
| Connection Type | Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end,Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end,Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end,Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end,Screw clamp terminals 1 cable(s) 1…4 mm²rigid without cable end,Screw clamp terminals 2 cable(s) 1…4 mm²rigid without cable end |
| Rated Operating Voltage | 690 V AC 25...400 Hz |
| Current Rating | 6 A at 120 V AC-15,1.04 A at 690 V AC-15,0.55 A at 125 V DC-13,0.1 A at 600 V DC-13 |
| Operating Period(Mech) | 30 Mcycles |
| Colour | Dark grey |
