Description

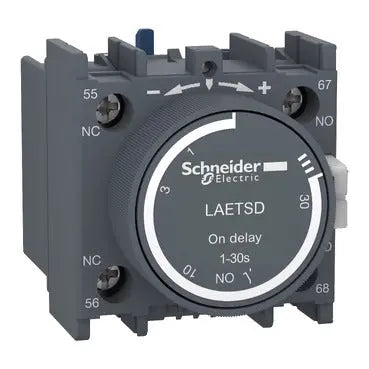

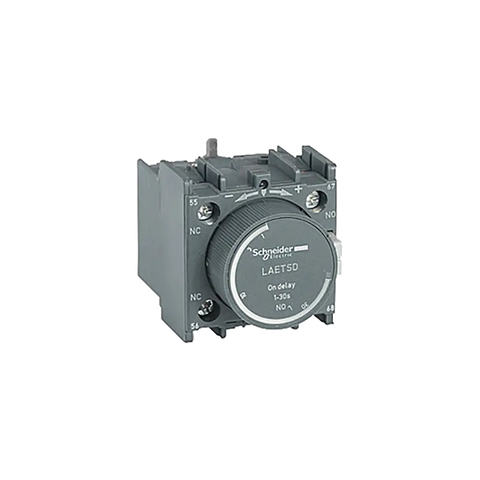

xThis time delay auxiliary contact block offers a delay range of 1 to 30 seconds with 1NO + 1NC contacts. It ensures reliable on-delay operation for EasyPact TVS applications.
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | IEC 60947-5-1 |
| Temperature: Operating | -5 °C to 55 °C |
| Weight (g) | 60g |
| Packaging size / unit | 1 / 40 pc(s) |
| Connection Type | Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end / Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end / Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end / Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end |
| Rated Operating Voltage | 690 VAC |
| Operating Period | 10 Mcycles (mechanical) |
| Warranty | 18 Months |
| Colour | Grey |
| RAL Code | RAL 7011 |
