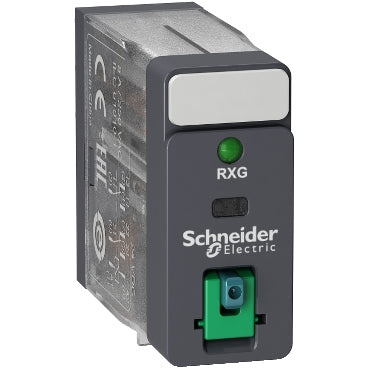

Schneider Interface plug-in relay, 2 c/o, 24VDC, 5A
Schneider Interface plug-in relay, 2 c/o, 24VDC, 5A

Schneider Interface plug-in relay, 2 c/o, 24VDC, 5A

This compact miniature relay includes 2 CO contacts with a 24 V DC control circuit voltage and an LED status indicator. Designed for secure applications, it provides a lockable test button for easy testing and operation.
Vendor: Schneider Electric
SKU: RXG22BD
Availability: In stock
Product type: Control Panel
Please hurry! Only 2 left in stock
Ask an expert
Description
Description
x
This compact miniature relay includes 2 CO contacts with a 24 V DC control circuit voltage and an LED status indicator. Designed for secure applications, it provides a lockable test button for easy testing and operation.
Specifications
Specifications
x
IP RatingIP40
Compliance/CertificationsCE / CSA / CSA C22.2 No 14 / DNV-GL / EAC / IEC 61810-1 / UL / UL 508
Temperature: Operating-40°C to 70 °C
Weight (g)20g
Packaging size / unit1 / 10 / 200 pc(s)
Tightening Torque0.8 Nm
Material: ProductSilver alloy (AgSnO2In2O3)
InterfacePlug-in relay
Operating Period10000000 cycles (mechanical) / 100000 cycles for NO resistive load at 55 °C / 100000 cycles for NC resistive load at 55 °C (electrical)
Documents
Documents
x
Download Datasheet
