Description

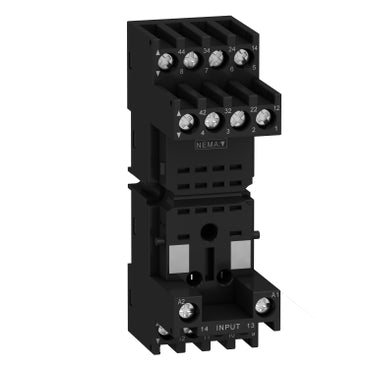

xThis screw-connection socket is designed for mixed contact relay and timer applications rated up to 250 V, with an IP20 enclosure suited to enclosed control panel installations. It accepts a range of flexible and solid conductor sizes via screw terminals, tightened to 1 Nm, allowing secure termination of field wiring. The socket operates across a temperature range of -40°C to 55°C, making it suitable for panels exposed to varied ambient conditions, and carries UL, CSA, IEC 61984 and Lloyd's compliance.
Key specifications
- IP rating: IP20
- Operating temperature: -40°C to 55 °C
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | UL / CSA / IEC 61984 / Lloyd's |
| Temperature: Operating | -40°C to 55 °C |
| Part Width (mm) | 27mm |
| Weight (g) | 56g |
| Packaging size / unit | 1 / 10 / 230 pc(s) |
| Tightening Torque | 1 Nm |
| Connection Type | Connector / 1 x 0.25 - 1 x 2.5 mm² (AWG 22 - AWG 14) flexible with cable end / Connector / 2 x 0.25 - 2 x 1 mm² (AWG 22 - AWG 17) flexible with cable end / Connector / 1 x 0.5 - 1 x 2.5 mm² (AWG 20 - AWG 14) solid without cable end / Connector / 2 x 0.5 - 2 x 1.5 mm² (AWG 20 - AWG 16) solid without cable end |
| Rated Operating Voltage | 250 V |
