Description

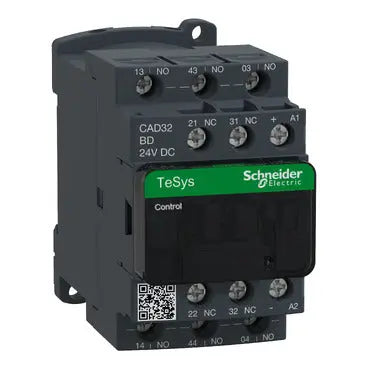

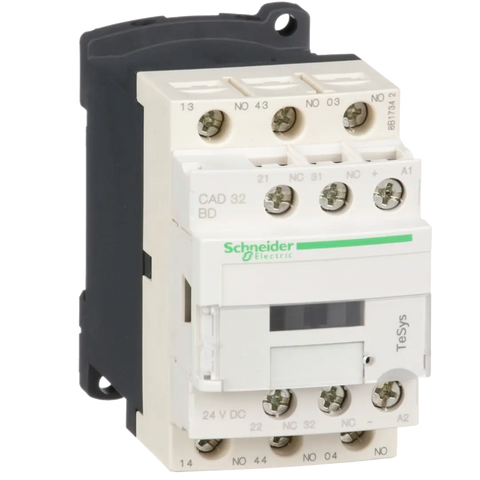

xThis TeSys CAD control relay offers 3 NO and 2 NC contacts, supporting up to 10 A at 690 V AC. It operates with a 24 V DC coil and is suitable for industrial control circuit applications.
Specifications
x| IP Rating | IP2X front face VDE 0106 |
| Country of Origin | Germany |
| Compliance/Certifications | CB / CCC / CE / CSA / CSA C22.2 No 60947-5-1 / EAC / EN/IEC 60947-5-1 / GB/T 14048.5 / JIS C8201-5-1 / UL / UKCA |
| Part Depth (mm) | 93mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 77mm |
| Weight (g) | 580g |
| Tightening Torque | 1.2 Nm |
| Connection Style | 3 Poles |
| Connection Type | screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible with cable end screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)solid without cable end screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)solid without cable end |
| Rated Operating Voltage | 690 VAC |
| Mounting Type | Rail plate |
| Operating Period | Mechanical Durability 30 Mcycles / Maximum Operating Rate 180 cyc/mn |
| Warranty | 18 Months |
