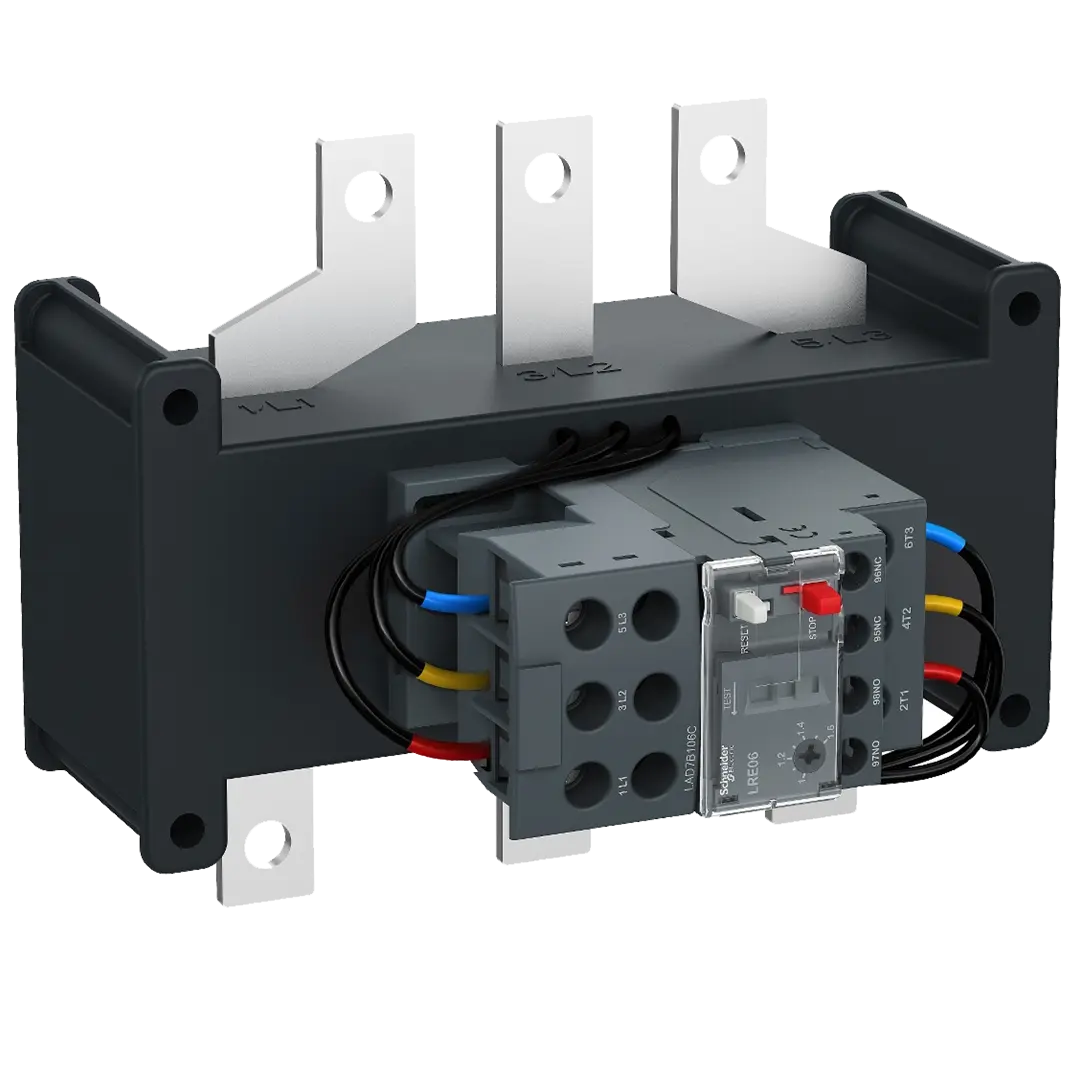

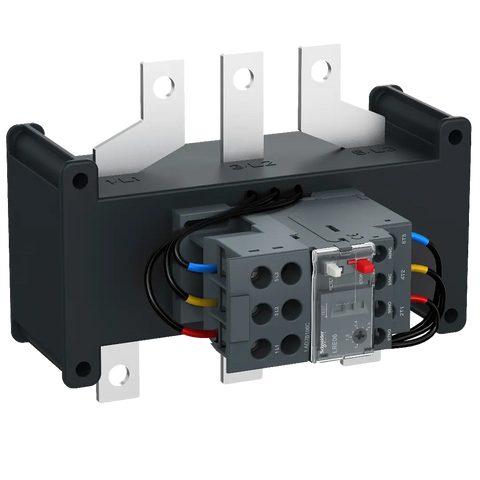

Name: Schneider EasyPact TVS Thermal Overload Relay
Brand: Schneider Electric
SKU: LRE485

Schneider EasyPact TVS Thermal Overload Relay - Rubicon Partner Portal

EasyPact TVS thermal overload relays are designed to protect a.c. circuits and motors against: b overloads b phase failure b Long starting time b prolonged stalled rotor condition. The thermal relay controls permanently the current driven by the motor.

Vendor: Schneider Electric

Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.

Availability: Out Of Stock

Product type: Control Panel

Please hurry! Only 0 left in stock

Description
Specifications
Documents
Alternatives

Range	Easy TeSys
Range of product	Easy TeSys Protect
Product or component type	Differential thermal overload relay
Device short name	LRE
Relay application	Motor protection
Phase failure sensitivity	Tripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1
Product compatibility	LC1E200...630
network type	AC
Network frequency	50...60 Hz
Mounting support	Under contactor Plate
Thermal overload class	Class 10A conforming to IEC 60947-4-1
Signalling function	Relay trip indicator
Thermal protection adjustment	174…279 A
Tripping threshold	1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Mechanical robustness	Shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7 Vibrations: 3 GN conforming to IEC 60068-2-6
Auxiliary contact composition	1 NO + 1 NC
[Ith] conventional free air thermal	5 A for signalling circuit
[Ue] rated operational voltage	<= 690 V AC
Associated fuse rating	315 A gG for power circuit 315 A aM for power circuit 5 A gG for signalling circuit
[Ui] rated insulation voltage	690 V conforming to IEC 60947-4-1
[Uimp] rated impulse withstand	6 kV
Local signalling	Trip indicator
Control type	Push-button red stop: Push-button green reset:
Temperature compensation	-20…60 °C
Connection pitch	48 mm
20-Jan-2025	1
Height	134 mm
Width	180 mm
Depth	134 mm
Net weight	2.2 kg
Standards	IEC 60947-4-1 IEC 60947-5-1
Product certifications	EAC
Protective treatment	TH conforming to IEC 60068
IP degree of protection	IP00 conforming to IEC 60529
Ambient air temperature for	-20…60 °C without derating conforming to IEC 60947-4-1
operation	-20…70 °C with derating
Fire resistance	850 °C conforming to IEC 60068-2-1
Dielectric strength	6 kV at 50 Hz conforming to IEC 60255-5
Electromagnetic compatibility	Surge withstand: 6 kV conforming to IEC 60801-5
Warranty	18 months
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	16.5 cm
Package 1 Width	17.7 cm
Package 1 Length	27.0 cm
Package 1 Weight	2.673 kg
Unit Type of Package 2	S03
Number of Units in Package 2	2
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	5.756 kg
