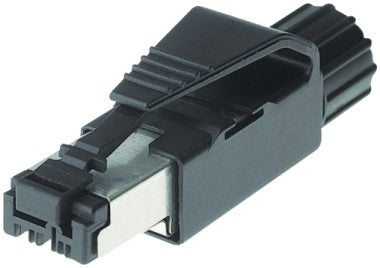

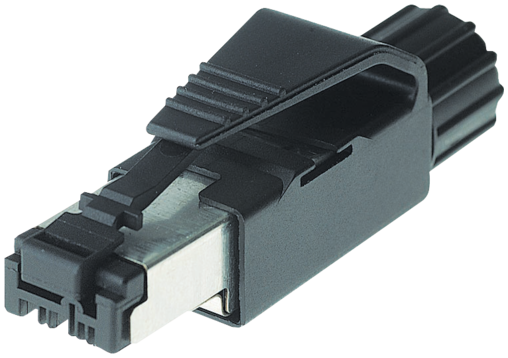

Murr RJ45 Ethernet 0°, 4-pole, shielded

Product Overview

Field-wireable RJ45 male connector (SKU: 7000-99051-0000000) designed for custom Ethernet network installations requiring on-site cable termination. This straight-mount connector features IDC (Insulation Displacement Connection) technology for quick and reliable field assembly of CAT5 Ethernet cables in industrial automation and data communication applications.

Key Features

• RJ45 male straight (0°) connector for standard Ethernet applications
• IDC (Insulation Displacement Connection) termination technology
• 4-pole configuration optimized for Ethernet CAT5 applications
• Shielded construction for EMI protection and signal integrity
• Field-wireable design eliminates need for specialized crimping tools
• AWG22-24 wire compatibility for standard Ethernet cables
• Cable diameter range: 6.5 - 6.9mm accommodation
• Robust plastic housing with chemical and oil resistance

Technical Specifications

• Connector Type: RJ45 male straight (0°), 8P4C
• Pole Count: 4-pole active
• Wire Gauge: AWG22-24 compatible
• Cable Diameter: 6.5 - 6.9mm sealing range
• Termination: IDC (Insulation Displacement Connection)
• Protocol Support: Ethernet CAT5
• Shielding: Yes, for EMI protection
• Protection Rating: IP20 (when properly installed)
• Contact Material: Gold-plated copper alloy
• Housing Material: Chemical and oil resistant plastic

Applications

• Field installation of Ethernet networks in industrial environments
• Custom cable assembly for automation systems
• Network infrastructure installations requiring on-site termination
• Industrial Ethernet connections in manufacturing facilities
• Data communication links in process control systems
• Network expansion and repair applications
• Custom cable length requirements in automation projects
• Retrofit installations where pre-made cables are not suitable

Compliance & Standards

• Ethernet CAT5 performance standards
• IDC termination for reliable field installation
• Chemical and oil resistant housing construction
• Gold-plated contacts for long-term reliability
• Industrial-grade construction for harsh environments
• EMC compliant shielded design
• RoHS compliant materials

Download existing graphical data for this product:

Product Datasheet
