Murr M8 female 90°, A-code, 3-pole, 5m

Product Overview

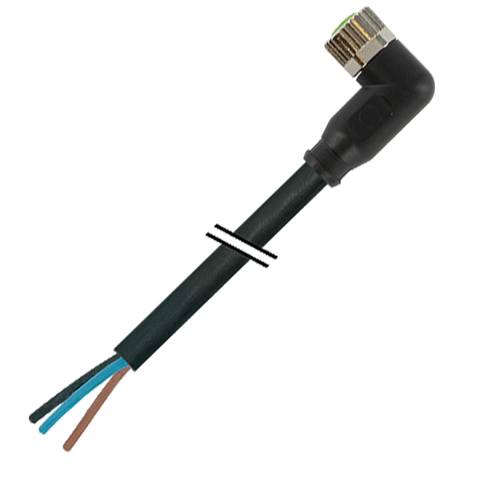

The Murrelektronik M8 female connector cable is a pre-assembled cordset designed for industrial signal applications requiring space-saving angled connections. This 5-meter cable features a 90-degree M8 female connector with A-coding and 3-pole configuration, terminated with open-ended wires for flexible system integration. Constructed with PVC (polyvinyl chloride) jacket and rated for UL/CSA applications, it provides reliable signal transmission in standard industrial automation and sensor connectivity applications.

Key Features

• M8 female 90-degree connector with A-coding (3-pole configuration)
• 5-meter cable length with open-ended wire termination
• PVC jacket with 3x0.25mm² conductors for standard applications
• UL/CSA certification for North American applications
• Die-cast zinc coupling nut for enhanced durability
• Cable sleeves included for enhanced protection
• Black jacket color for professional appearance
• Art-No. 7005 - M8 Lite connector with plastic hexagonal screw
• Silicone-free construction

Technical Specifications

• Model: M8 female 90° A-cod. with cable
• Article Number: 7000-08081-6100500
• Connector Type: M8 female, 90-degree angled
• Coding: A-coded

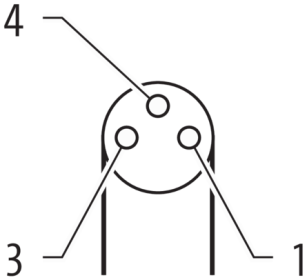

• Pole Configuration: 3-pole
• Cable Length: 5 meters
• Conductor Specification: 3x0.25mm² (#24AWG)

Connection Specifications

• Connector End: M8 female 90-degree connector, A-coded

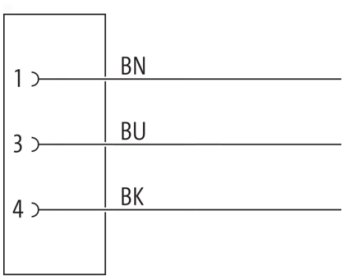

• Wire End: Open-ended flying leads with cable sleeves
• Cable Jacket: PVC (Polyvinyl Chloride) black
• Conductor Size: 3x0.25mm² (3x#24AWG)
• Coupling Nut: Die-cast zinc construction
• Connector Series: M8 Lite with plastic hexagonal screw
• Protection Rating: IP65/IP66K/IP67
• Voltage Rating: 60VDC maximum
• Current Rating: 4A maximum per contact

Applications

• Space-constrained industrial installations requiring angled connections
• Sensor connectivity in confined mounting areas
• Machine control systems with limited clearance requirements
• Industrial automation with 90-degree cable routing needs
• Process control instrumentation in tight spaces
• Standard industrial environments without dynamic movement requirements

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Quality Standards: German engineering and manufacturing
• Industrial Standards: Suitable for standard automation applications
• Protection Standards: IP65/IP66K/IP67 environmental protection
• Material Standards: Silicone-free construction

Benefits

• Pre-assembled construction eliminates field termination requirements
• 90-degree connector design saves space in confined installations
• A-coding ensures proper mating and prevents mis-connection
• Open-ended wires allow direct connection to control systems
• UL/CSA certification ensures compliance with North American standards
• 5-meter length provides optimal balance of flexibility and cost-effectiveness
• PVC jacket offers good resistance to chemicals and oils for standard applications
• Die-cast zinc coupling nut provides mechanical strength and durability

Download existing graphical data for this product:

• Data Sheet
