Murr M8 female 0°, A-code with cable, 4-pole, black, 5m

Product Overview

The Murrelektronik M8 female connector cable is a pre-assembled cordset designed for industrial sensor and actuator connectivity applications requiring 4-pole signal transmission. This 5-meter cable features a straight M8 female connector with A-coding and 4-pole configuration, terminated with open-ended wires for direct connection to control systems. Constructed with PVC jacket and rated for UL/CSA applications, it provides reliable signal transmission in industrial automation environments with IP65/IP66K/IP67 protection rating and excellent resistance to oils and chemicals.

Key Features

• M8 female straight connector with A-coding (4-pole configuration)
• 5-meter cable length with open-ended wire termination
• PVC jacket with 4x0.25mm² conductors for standard industrial applications
• UL/CSA certification for North American applications
• IP65/IP66K/IP67 protection rating for industrial environments
• Excellent resistance to oils and chemicals
• Silicone-free construction
• Art-No. 7005 - M8 Lite connector with plastic hexagonal screw
• Black jacket color for professional appearance

Technical Specifications

• Model: M8 female 0° A-cod. with cable
• Article Number: 7000-08061-6110500
• Connector Type: M8 female, straight (0°)
• Coding: A-coded

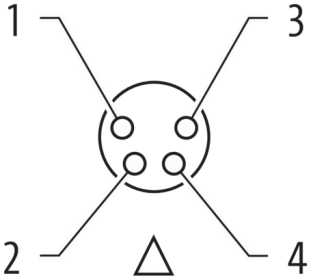

• Pole Configuration: 4-pole
• Cable Length: 5 meters
• Conductor Specification: 4x0.25mm² (#24AWG)
• EAN Code: 4048879001083

Connection Specifications

• Connector End: M8 female straight connector, A-coded

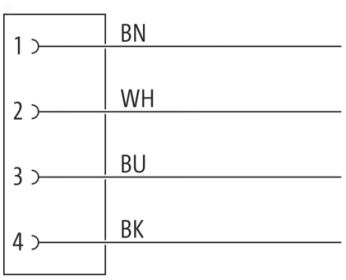

• Wire End: Open-ended flying leads
• Voltage Rating: 30VAC/30VDC maximum
• Current Rating: 4A maximum per conductor
• Protection Rating: IP65/IP66K/IP67
• Conductor Size: 4x0.25mm² (4x#24AWG)
• Cable Jacket: PVC (Polyvinyl Chloride) black
• Contact Material: Copper alloy

Applications

• 4-pole industrial sensor and actuator connectivity
• Machine control systems requiring additional signal channels
• Process control instrumentation with multiple signal requirements
• Factory automation applications needing 4-conductor connections
• Industrial equipment requiring female connector interfaces
• Control system integration with 4-wire sensor configurations

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Protection Standards: IP65/IP66K/IP67 environmental protection
• Temperature Standards: Operating range -20°C to +85°C
• Voltage Standards: 30VAC/30VDC rated for signal applications
• Quality Standards: German engineering and manufacturing
• Chemical Resistance: Excellent resistance to oils and industrial chemicals

Benefits

• Pre-assembled construction eliminates field termination requirements
• 4-pole configuration supports additional signal or power requirements
• Female connector design enables direct sensor connection
• PVC jacket offers good chemical and oil resistance for industrial environments
• 5-meter length provides optimal balance of reach and cost-effectiveness
• A-coding ensures proper mating and prevents mis-connection
• UL/CSA certification ensures compliance with North American standards
• Silicone-free construction prevents contamination in sensitive applications

Download existing graphical data for this product:

• Product Specification Sheet
