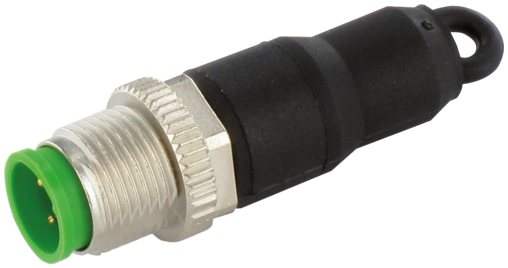

Murr M12, male, bus terminating plug, devicenet, 5-pole

Product Overview

The Murrelektronik M12 male bus terminating plug features integrated terminating resistor technology specifically designed for DeviceNet and CANopen industrial communication networks. This A-coded 5-pole terminating plug provides essential network termination to ensure proper signal integrity and reliable data transmission in industrial automation systems, eliminating signal reflections and maintaining network stability at bus endpoints.

Key Features

• M12 male connector with A-coding and 5-pole configuration
• Integrated terminating resistor for network termination
• Specifically designed for DeviceNet and CANopen protocols
• Ready-to-use plug eliminates external resistor requirements
• Compact design for space-efficient installations
• Robust plastic housing with industrial-grade construction
• Easy installation with standard M12 threading
• Professional circuit design for optimal network performance
• Chemical and oil resistant housing materials
• Reliable termination for industrial communication networks

Technical Specifications

• Article Number: 7000-13461-0000000
• Connector Type: M12 male, A-coded

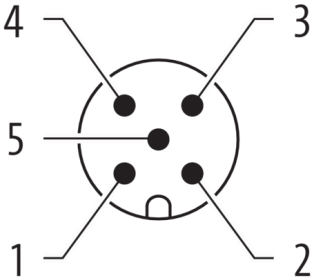

• Pole Configuration: 5-pole with circuit diagram
• Application: DeviceNet, CANopen bus termination
• Terminating Resistor: Integrated internal resistor
• Operating Temperature: Standard industrial range
• Housing Material: High-resistance plastic
• Protection Rating: Industrial grade environmental protection
• Installation: Standard M12 threaded connection

Applications

• DeviceNet network termination at bus endpoints
• CANopen communication system termination
• Industrial automation network signal integrity maintenance
• Control system bus network proper termination
• Manufacturing communication network installations
• Process control system network termination
• Machine automation network endpoint termination
• Fieldbus system signal reflection elimination

Standards and Compliance

• Communication Standards: DeviceNet and CANopen compatible
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for industrial communication networks
• Environmental Standards: Chemical and oil resistance testing

Benefits

• Integrated terminating resistor eliminates need for external components
• A-coded design ensures proper network compatibility
• Ready-to-use solution reduces installation time and complexity
• Professional circuit design ensures optimal network performance
• Compact form factor saves installation space
• Robust construction withstands industrial environments
• Easy installation with standard M12 connection
• Prevents signal reflections that can cause communication errors
• Essential component for proper network functionality
• Cost-effective solution for network termination requirements
• Excellent resistance against chemicals, oils, and environmental contaminants
• Reliable long-term performance in demanding applications

Downloads:

• Product Data Sheet
